BA-235 CU

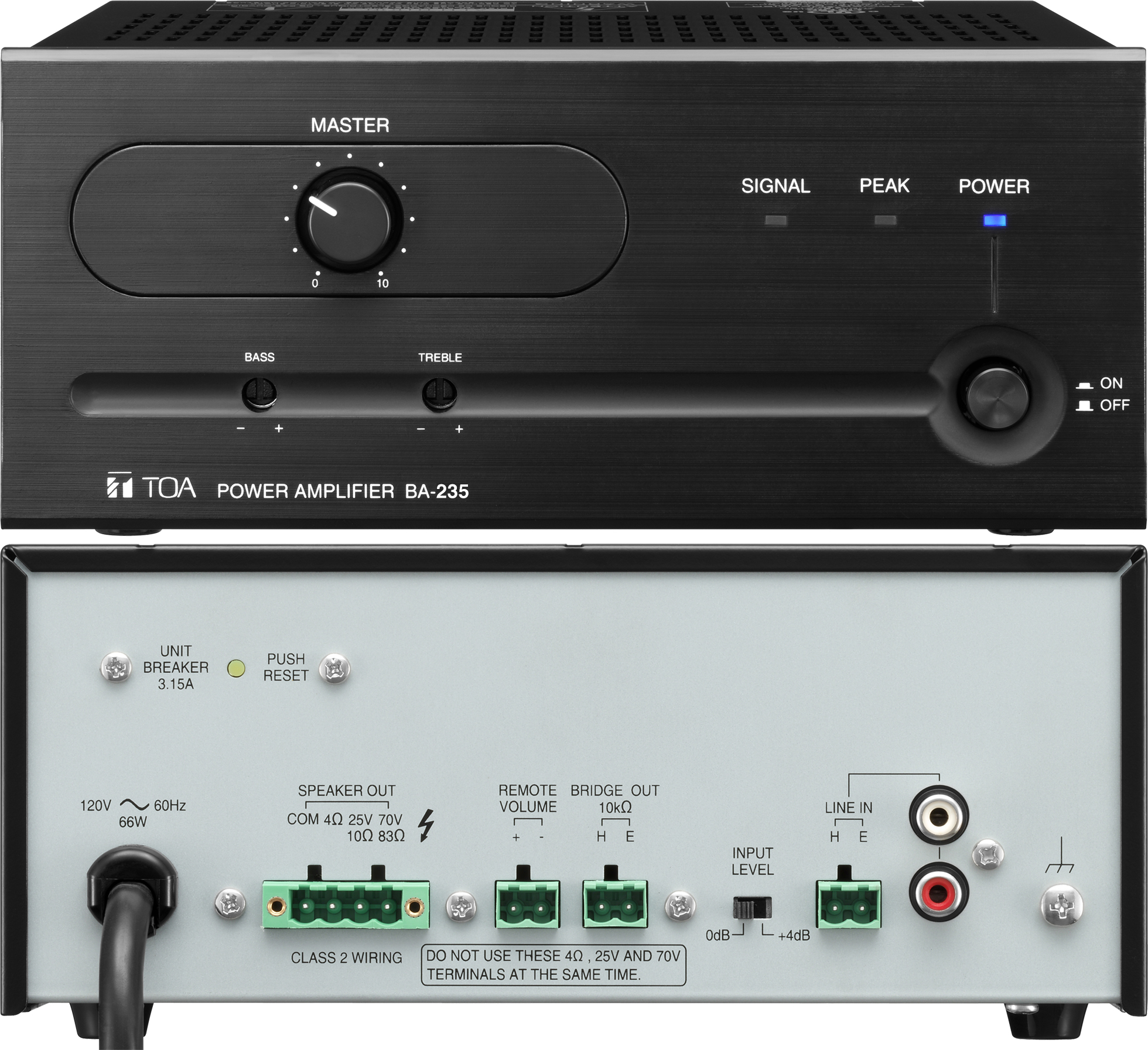

BA-235 Power Amplifier

BA-235 CU

The BA-235 is a 35 W power amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms. When used in conjunction with the optional mixer amplifier BG-220 (20 W) or BG-235 (35 W), 2-channel broadcast can be made.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source 120 V AC, 60 Hz
Rated Output 35 W
Power Consumption 90 W (rated output), 52 W (based on cULus standards)
Frequency Response 50 Hz - 20 kHz
Total Harmonic Distortion 0.5 % or less, at 1 kHz, rated output
Input Line In: 0 dB*/+4 dB* (selectable), 10 kΩ, unbalanced,
removable terminal block or RCA jack
Output Speaker: 4 Ω, 25 V (18 Ω) and 70 V (140 Ω),
balanced, removable terminal block
Bridge: parallel in Line in, removable terminal block
Output Regulation 2 dB or less, no load to full load (1 kHz)
S/N Ratio 80 dB or more
(Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Control Master gain control, Bass tone control, Treble tone control,
Input Level selector switch, Remote Volume control, Power ON/OFF switch
Indicator Power LED, Signal LED, Peak LED
Operating temperature 0 ℃ to +35 ℃ (32 ゜F to 95 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish Panel: ABS resin, black
Case: Steel plate, black, paint
Dimensions 210 (W) × 94.3 (H) × 265 (D) mm (8.27" × 3.71" ×10.43")
Weight 4 kg (8.82 lb)
Accessory Volume control cover: YA-920 ……1
Removable teminal plug (2 pins) ……3
Removable teminal plug (4 pins) ……1
Option Rack mounting bracket: MB-25B-BK, MB-25B-J
