SX-2000CO Control Output Unit

SX-2000CO

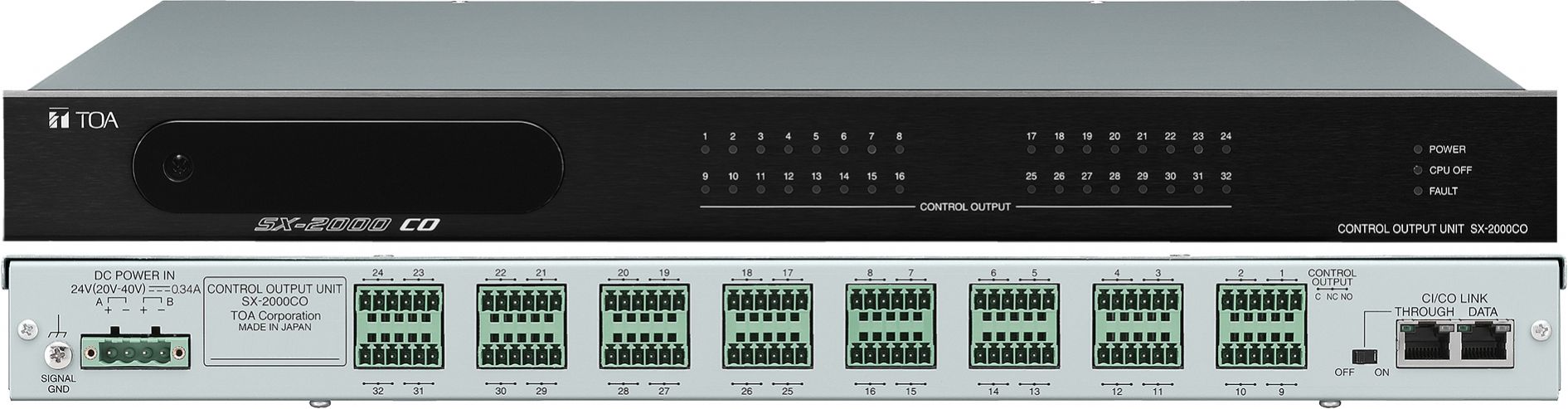

The SX-2000CO is a control output of the matrix system and can be mounted in an EIA equipment rack (1 U size). Multiple units can be decentralized in a whole system. It is equipped with 32 control output channels. The indicators on the front panel monitor the control output line status. Control output status when the CPU turns off can be set. The SX-2000CO has two power inputs and can support a dual-redundant power supply system. By using a stand-alone mode, system can be configured with only the SX-2000CO, SX-2000CI Control input unit and the power supply unit, permitting the contact data of multiple channels to be transmitted to the remote locations with simple wiring.



QTY: Add to Request for quote Request for quote
Specification
When operating in matrix mode
Power Source Usable power supply unit: AD-011, AD-031B
24 V DC (operational range: 20 V - 40 V DC)
Two power inputs construction enables dual-redundant power supply.
Current Consumption 0.34 A or less (maximum value in the power operating range)
0.29 A or less (when operated on 24 V DC)
Indication Control input indicator (32), Power indicator, CPU OFF indicator, FAULT indicator
Control Output 32 outputs, no-voltage make contact output, relay contact output
(withstand voltage: 40 V DC, control current: 2 mA to 300 mA),
removable terminal block (6 pins)
CI/CO Link
Input/Output Connector Input: 1 input, Output: 1 output
RJ45 Connector
Connection Cable Shielded Category 5 twisted pair cable (CAT5-STP)
(1 pair of data wire + 1 pair of control wire)
Maximum Cable Distance 800 m (874.89 yd)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish Panel: Aluminum, black, alumite
Case: Surface-treated steel plate
Dimensions 482 (W) × 44 (H) × 331.5 (D) mm (18.98 × 1.73" × 13.05")"
Weight 3.6 kg (7.94 lb)
Accessory Removable terminal plug (16 pins) …4, Removable terminal plug (4 pins) …1,
Removable terminal plug (2 pins) …1, Rack mounting screw …4
When operating in stand-alone mode
Conductor diameter of the main cable vs. maximum cable length (when the RM-200RJ is used)
Conductor diameter Maximum Cable Distance
⌀0.65 mm (⌀0.026") 160 m (175.04 yd)
⌀0.9 mm (⌀0.035") 320 m (350.08 yd)
⌀1.2 mm (⌀0.047") 570 m (623.58 yd)
⌀0.9 mm (⌀0.035") AWG 16 × 3 pairs CPEV (2 pairs for DC and 1 pair for data) 640 m (700.16 yd)
⌀1.2 mm (⌀0.047") AWG 16 × 3 pairs CPEV (2 pairs for DC and 1 pair for data) 800 m (875.20 yd)
