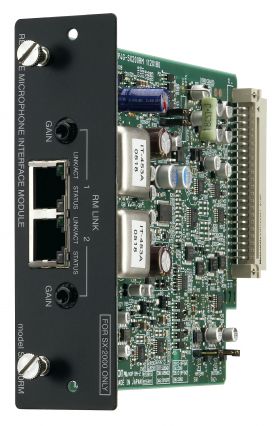

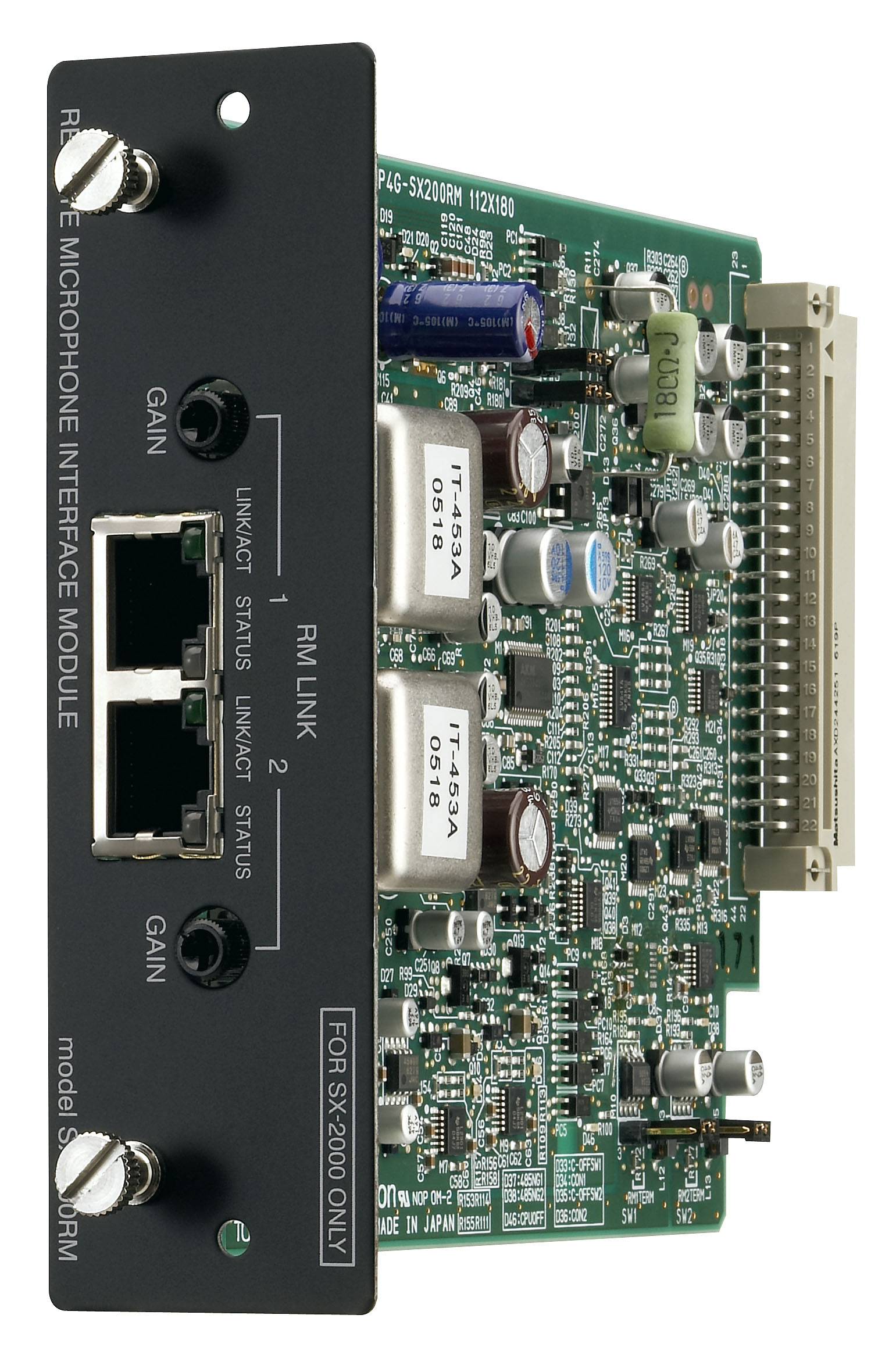

SX-200RM Remote Microphone Interface Module

SX-200RM

The SX-200RM is a dedicated remote microphone module for the SX-2000 Series audio input unit and can be used to connect two remote microphones. Input sensitivity can be adjusted using the knobs located near the RJ45 connector.

QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Audio Input 2 inputs, 0 dB*, RJ45 connector
Audio Input Characteristic Sampling frequency: 48 kHz
AD converter: 24 bits
Power Feed Max. 1 A per connector
Level Control Audio input (0 to +12 dB)
Finish Panel: Pre-coated steel plate, black, 30 % gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 190 g
