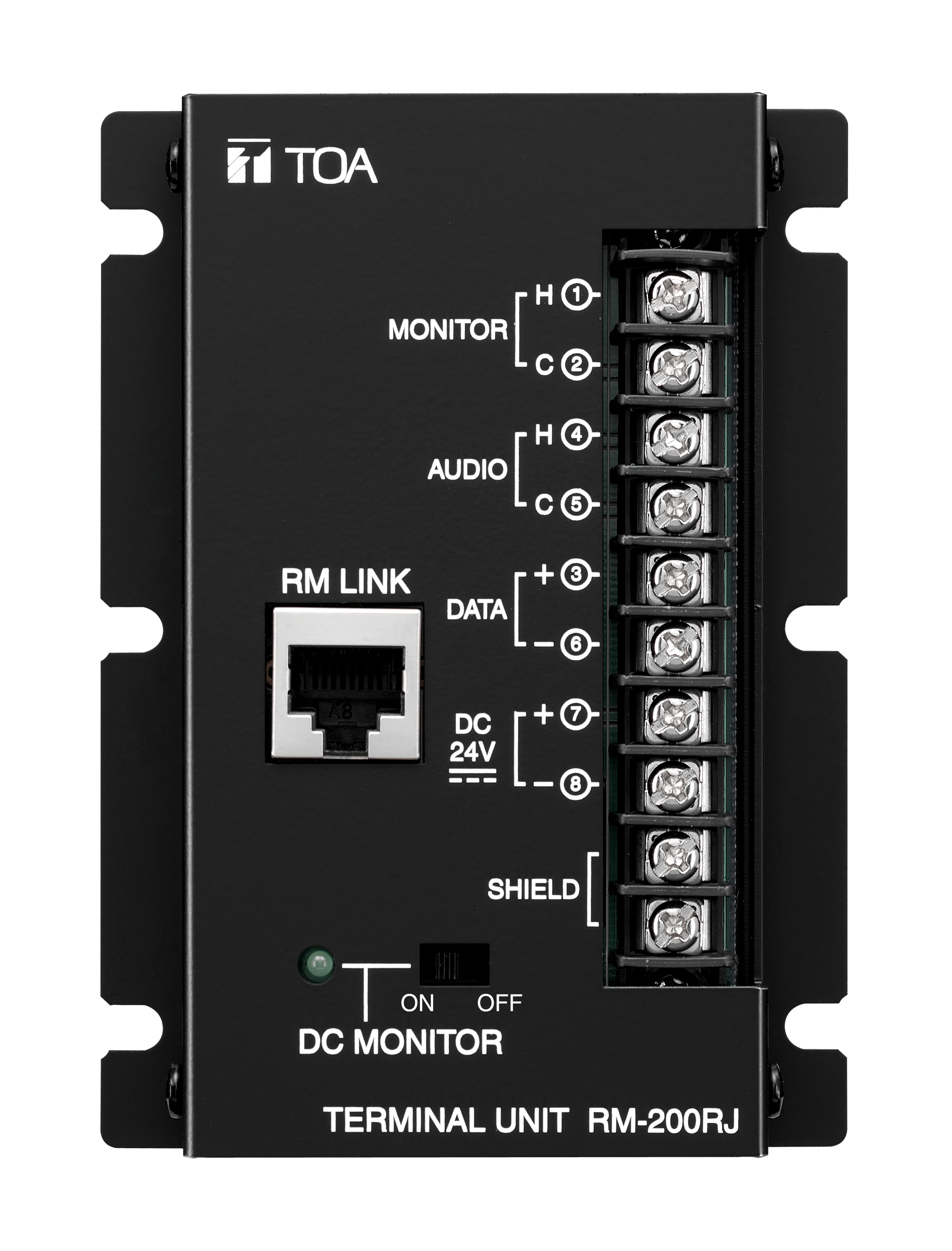

RM-200RJ Terminal Unit

RM-200RJ

The RM-200RJ is designed to convert the RJ45 connector into a screw terminal block. It is used to connect between a trunk cable (such as CPEV cable) and a feeder cable (such as LAN cable) in wiring a remote microphone. The built-in indicator shows the voltage status of DC power cable when the remote microphone cable for the SX-2000 series system is connected.



QTY: Add to Request for quote Request for quote
Specification
Applied Voltage 40 V or less
Withstand Voltage 1 A
Voltage Indicator Monitor terminals: Terminal No. 7 (+) and terminal No. 8 (-),
extinguish voltage: 14 V or less, lighting voltage: 21 V or more,
indicator ON/OFF switchable
Connector RJ45 Connector: 1
Terminal M3 screw terminal (10 pins), distance between barriers: 6.62 mm (0.26")
Operating Temperature 0℃ to +40℃ (32゜F to 104゜F)
Operating Humidity 35% to 80% RH (no condensation)
Finish Surface-treated steel plate, black, paint
Dimensions 84 (W) × 116 (H) × 25.7 (D) mm (3.31" × 4.57" × 1.01")
Weight 250 g (0.55 lb)
