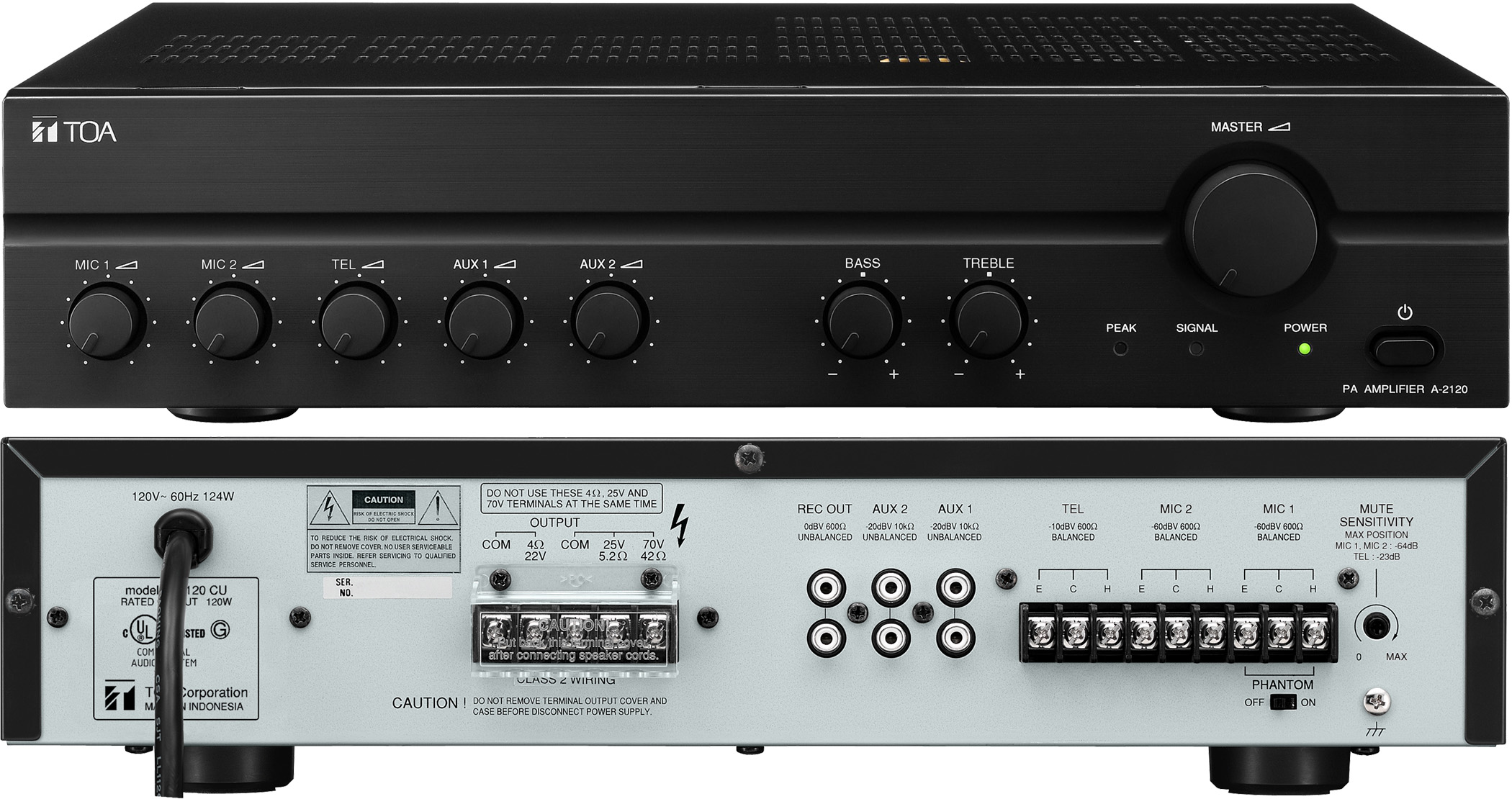

A-2120 Mixer Power Amplifier (CU version)

A-2120 CU

The A-2120 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source 120 V AC
Rated Output 120 W
Power Consumption 124 W (EN60065), 260 W (AC operation at rated output)
Frequency Response 50 - 20,000 Hz (±3 dB)
Distortion 1% or less at 1 kHz, 1/3 rated power
Input MIC 1, 2: -60 dB*, 600 Ω, balanced, M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
TEL: -10 dB*, 10 kΩ, balanced, M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
Output Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
High impedance: 42 Ω (70 V), 5 Ω (25 V)
Low impedance: 4 Ω (22 V)
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
S/N Ratio 60 dB or more
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1, MIC 2, and TEL have a priority function to attenuate AUX1 and AUX 2
input signals by 30 dB. (Sensitivity level for MIC 1, MIC 2, and TEL adjustable)
Priority level among MIC 1, MIC 2, and TEL is the same.
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19")
Weight 12.5 kg (27.56 lb)
