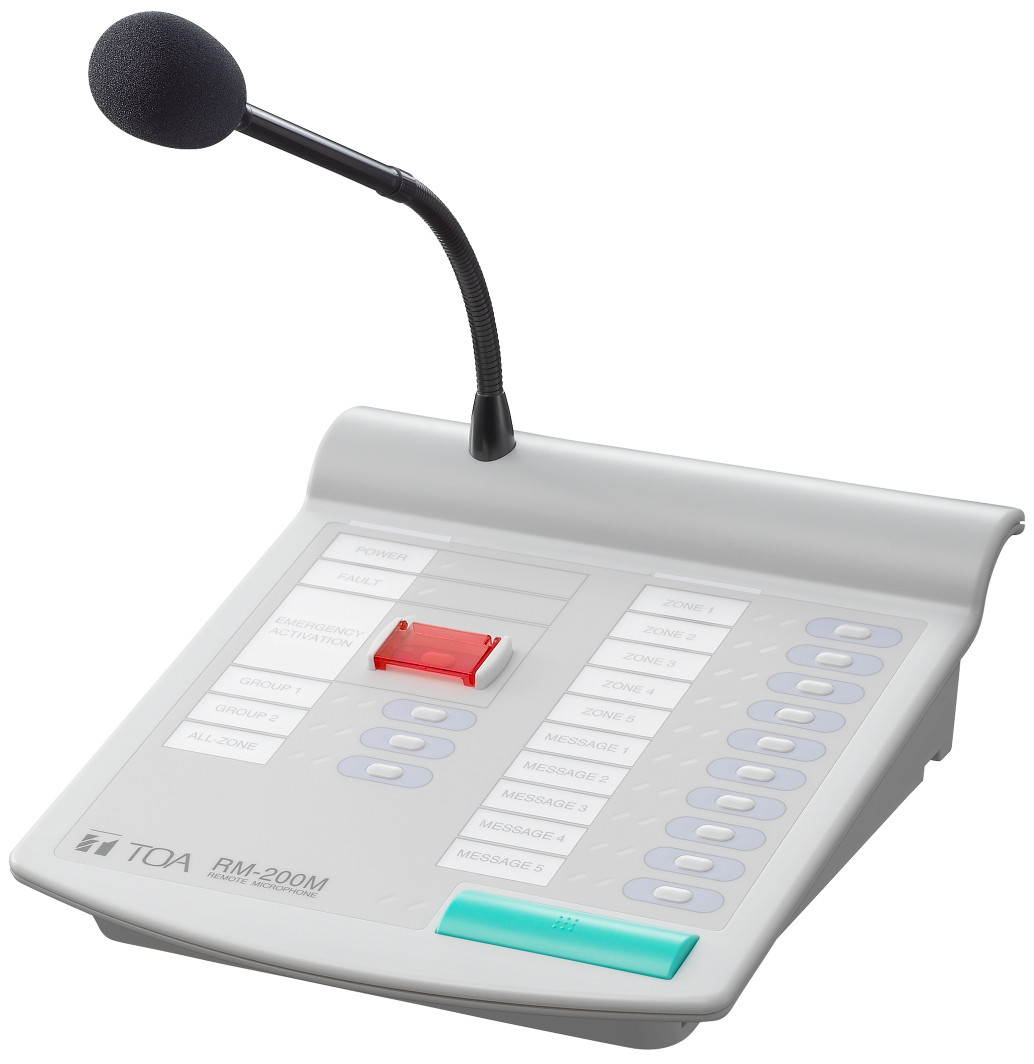

RM-200M S Remote Microphone

RM-200M S

The RM-200M Remote Microphone connects to the VM-3240VA, VM-3360VA, VM-2120 and VM-2240 for the purpose of making emergency(*3)/general broadcast announcements.

The worlds first Voice Evacuation System complying with both American and Canadian standards UL 2572 and CAN/ULC-S576 listings.





QTY: Add to Request for quote Request for quote
Specification
(*1) 0 dB = 1 V
Power Source 24 V DC (Operating range: 14 - 28 V DC)
Power input jack: Non-polarity type
Usable power input plug(*2): Outer diameter φ5.5 mm
φ2.1 mm
Current Consumption 100 mA or less
Audio Output 0 dB(*1)
Distortion 1% or less
Frequency Response 100 - 20
S/N Ratio 60 dB or more
Microphone Unidirectional electret condenser microphone
No. of Function Keys 13
Emergency Broadcast(*3) Activation of Emergency Broadcast (pre-recorded announcement or live
microphone announcement) by Emergency Broadcast Switch
Volume Control Microphone volume control
Connection Cable and Connector Category 5 STP cable
Finish ABS resin
Dimensions 190 (W) × 76.5 (H) × 215 (D) mm (Gooseneck microphone excluded)
Weight 750 g
Accessory Link cable (3 m) ……1
Option Wall mounting bracket: WB-RM200
(*2) Use the AC adapter AD-246 or equivalent.
(*3) Connecting VM-2000 only
