EV-200M + EV-CF64 Q

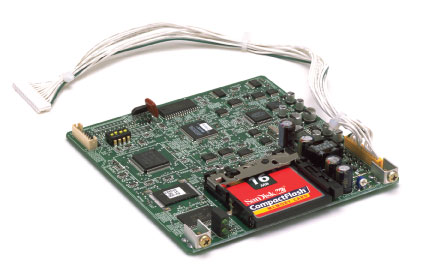

EV-200M Voice Announcement Board

EV-200M

The EV-200M is a playback-only Voice Announcing board to play back the messages recorded on The EV-350R. The EV-200M is designed to be built in the VM-2000 series amplifiers and VX-2000 system.

QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source 24 V DC, 0.2 A
Power Consumption 5 W
Output 0 dB*
Frequency Response 20 - 20,000 Hz (44.1 kHz sampling)
20 - 14,000 Hz (32 kHz sampling)
Distortion Under 0.3 % (44.1 kHz, recording method: Extremely High)
Playback Mode Single source playback
No. of Playback Program 8 programs
Operating Temperature 0℃ to +50℃
Operating Humidity Under 90% RH (no condensation)
Dimensions 120 (W) × 18.6 (H) × 121 (D) mm
Weight 120 g
Accessory Mounting screw …2,
CompactFlash card (128 MB, preinstalled on the unit) …1
Notes: Use the CompactFlash card adapter on the market for recording by the EV-350R.
