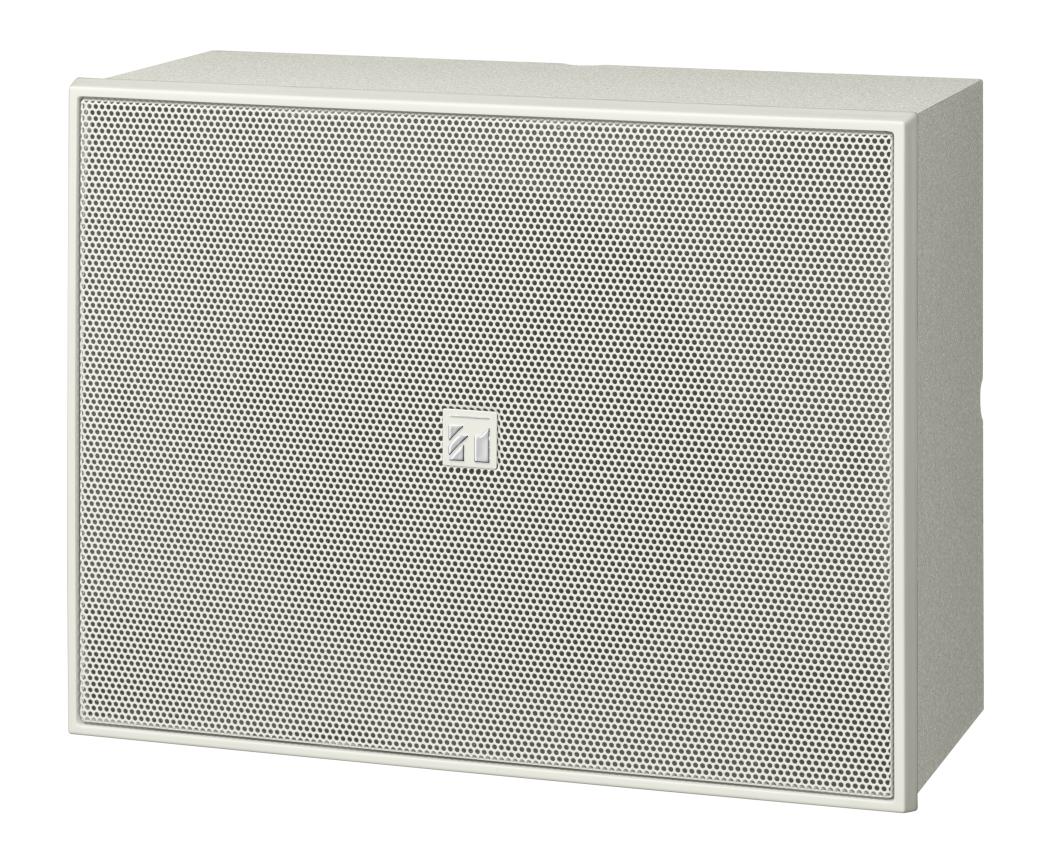

BS-678 Wall Mount Speaker

BS-678

The BS-678, of which cabinet is made of wood, can be installed in a vertical or horizontal orientation. Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection. The speaker structure that permits direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to. The input impedance can be easily changed by changing the tap position of the transformer. Two built-in 6-inch double cone speaker units deliver high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring.
Sold In Pairs



Specification
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Dispersion (1 to 4k Hz avg.) 120° Horizontal     120° Vertical
Sensitivity 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response 150 Hz - 20 kHz (peak -20 dB)
Speaker Component 16 cm (6") double cone-type
Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)
7-core twisted wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
Connection Push-in connector (bridging terminal)
Finish Baffle: HIPS, off-white (RAL 9010 or equivalent color)
Cabinet: Particle board with pvc sheet, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color)
Dimensions 250 (W) × 190 (H) × 110 (D) mm (9.84" × 7.48" × 4.33")
Weight 1.7 kg (3.75 lb)
Accessory Speaker mounting screw (4 × 35 (0.16" × 1.38")) …2
