CS-64

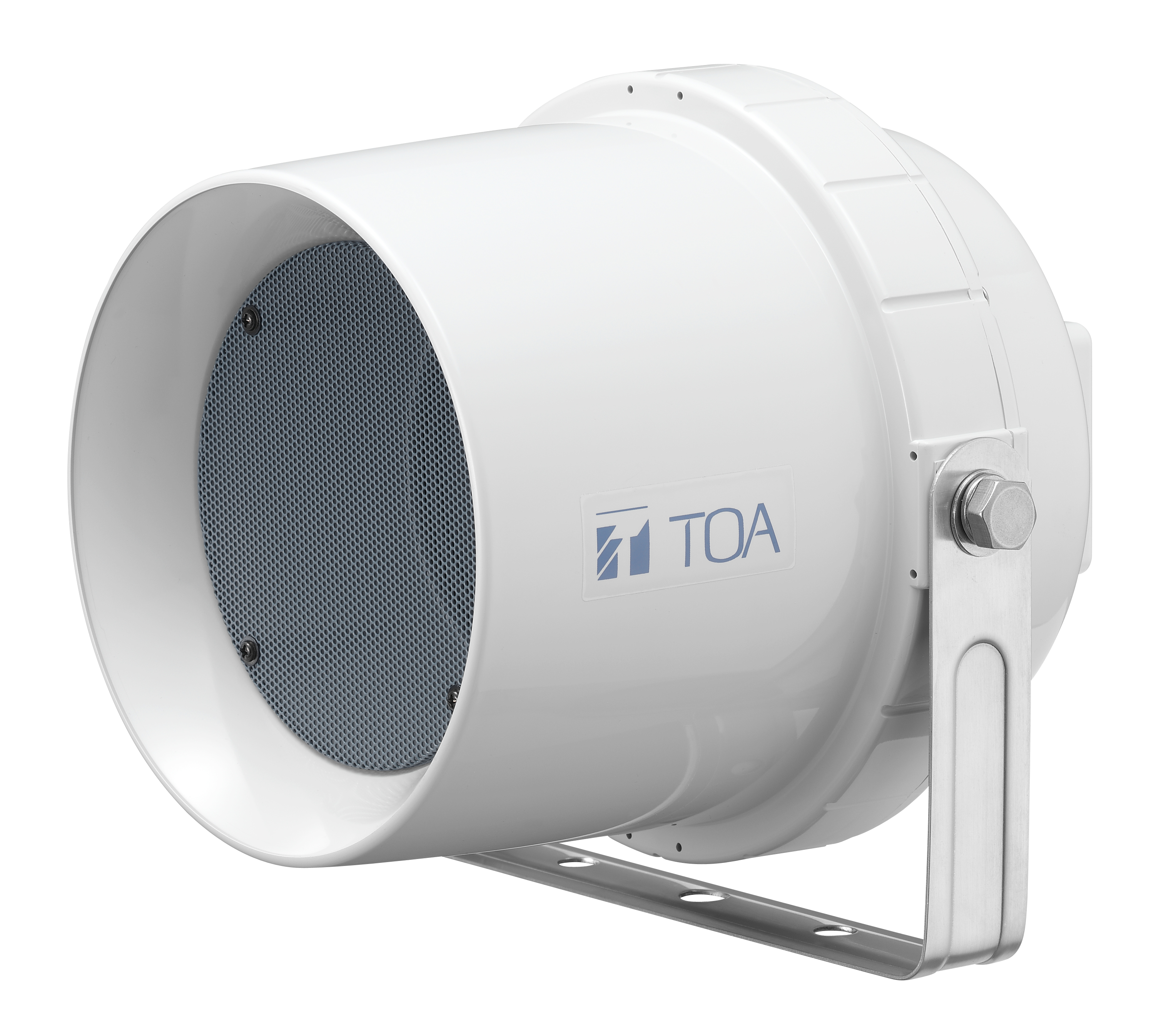

CS-64 Wide Range Weatherproof Speaker

CS-64

The CS-64 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-64 employs the rotary switch that facilitates impedance changes.

Also available in a UL version by special order. CS-64U: UL 1480 UEAY

       UL

QTY: Add to Request for quote Request for quote
Specification
Rated Input 6 W
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Dispersion (1 to 4K HZ avg.) 130° Horizontal   130° Vertical
Sensitivity 96 dB (1 W, 1 m)
Frequency Response 130 - 13,000 Hz
Speaker Component 12 cm cone-type (treated for splash proof)
Speaker Cord 2-core cabtyre cord with diameter of 6 mm
Temperature Range -20℃ to +55℃
Finish Horn, cover: ABS resin, off-white, paint
Bracket: Stainless steel
Panched net: Surface treated steel plate, dark-gray, powder coating
Screw: Stainless steel
Dimensions 233 (W) × 224 (H) × 208 (D) mm
Weight 1.5 kg
[Note] Do not install the speaker face-up from a horizontal plane nor in such a way that the paper cone is exposed to direct sunlight.
If water accumulates on the paper cone, or ultraviolet rays are radiated on it, this may cause the paper cone to deteriorate, leading to speaker malfunction.

Also available in a UL version by special order. CS-64U: UL 1480 UEAY
