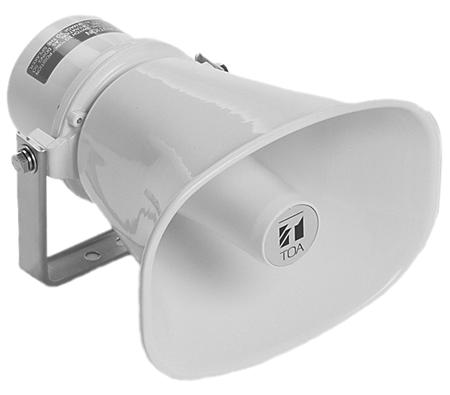

SC-615T Paging Horn Speaker

SC-615T

The SC-615T is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.



QTY: Add to Request for quote Request for quote
Specification
Rated Input 15 W
Line Voltage 70 V line or 25 V line
Rated Impedance 70 V line: 330 Ω (15 W), 650 Ω (7.5 W), 1.3 kΩ (3.8 W)
25 V line: 42Ω (15 W), 83 Ω (7.5 W), 330 Ω (1.9 W),
650 Ω (1 W), 1.3 kΩ (0.5 W)
Sound Pressure Level 112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response 280 Hz - 12.5 kHz
Sensitivity when used as Microphone (0 dB=1 mW/10 dynes/c㎡) -22 dB at 1 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 %%dC to +55 %%dC (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions 222 (W) × 179 (H) × 234 (D) mm
Weight 1.3 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
Note: Avoid installing the speaker in locations which vibrate considerably, or under environments easy to be oil-contaminated.
