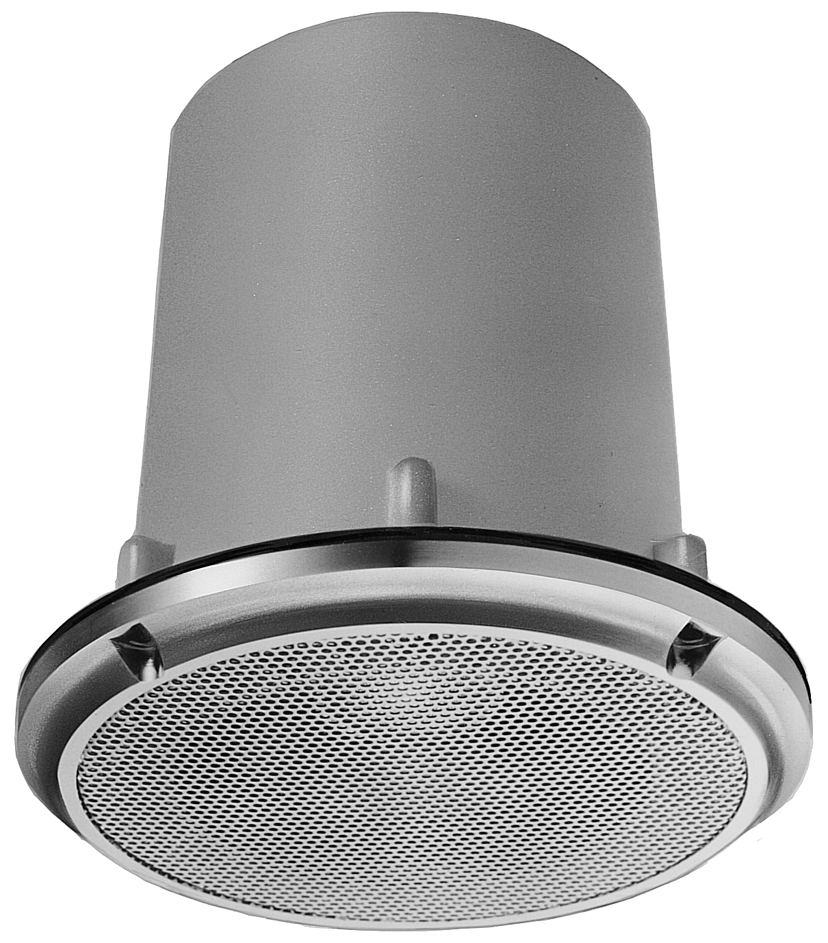

PC-5CL Clean Room Ceiling Speaker

PC-5CL

Full-range 8 cm, 2 kΩ/5 W speaker with sealed rear chamber, and high-molecular substance speaker vibration section to prevent floating dust particles from contaminating medical, chemical, or IC/photo film production.

QTY: Add to Request for quote Request for quote
Specification
Rated Power 5 W
Rated Impedance 100 V line: 2 kΩ (5 W), 70 V line: 2 kΩ (2.5 W)
Sensitivity 87 dB (1 W, 1 m)
Frequency Response 150 Hz - 20 kHz
Enclosure Completely sealed type
Speaker Component 8 cm cone-type (vibration section : high molecular substance)
Operating Temperature -20 ℃ to +55 ℃
Dust Particle Prevention No dust particle is produced by the method set out in JIS B-9926.
Finish Panel : Alloy-coated ABS resin
Enclosure : ABS resin, off-white
Punching net : Stainless steel
Exposed fixing screw : Stainless steel
Dimensions φ116 × 110 (D) mm
Weight 620 g
Dimensions for Fixing Holes φ98 mm
Accessory Fixing gasket …1, Ceiling mounting screws (Material:Stainless steel) …4
