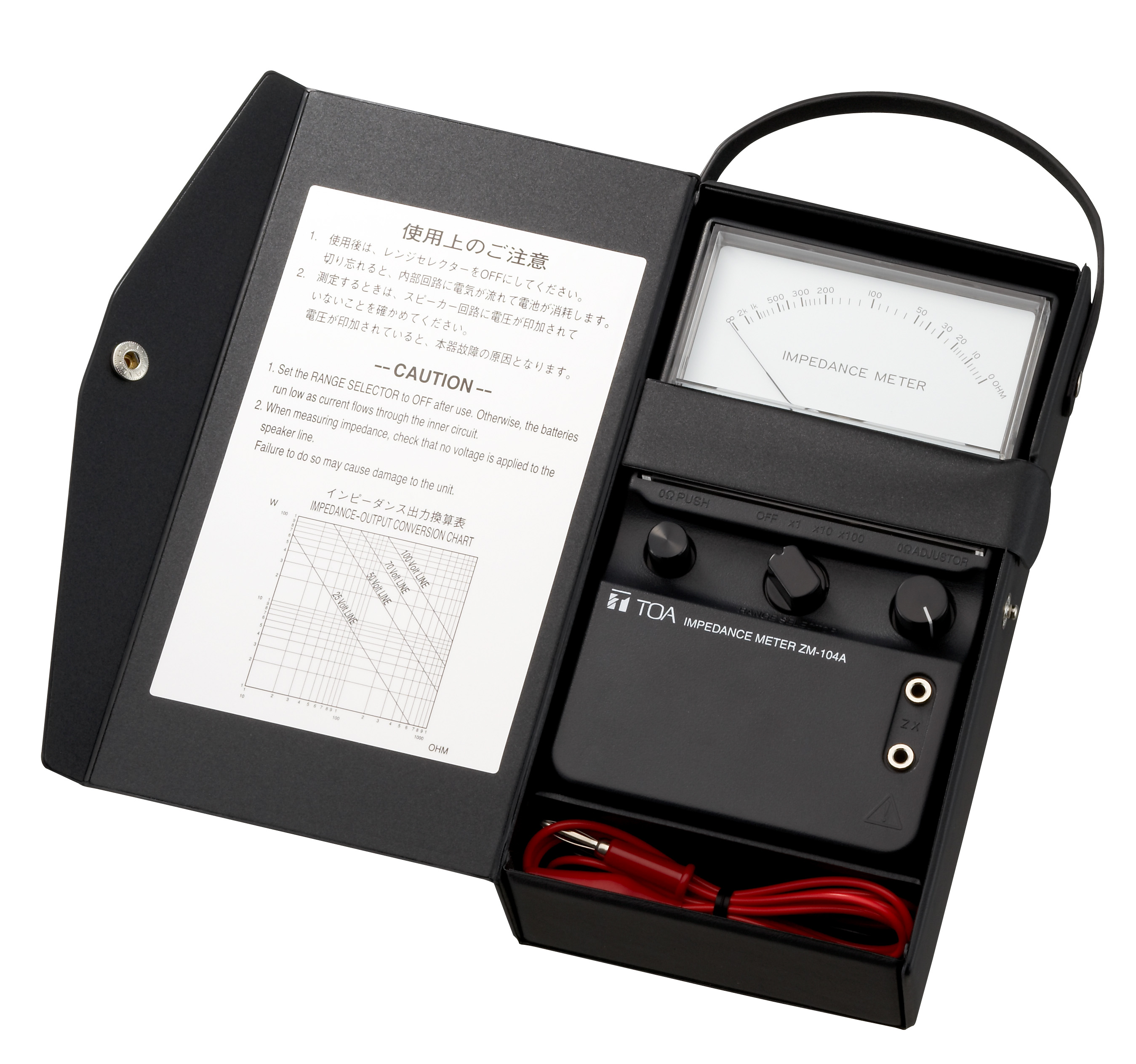

ZM-104A Impedance Meter

ZM-104A

The ZM-104A Impedance Meter can measure the impedance of speaker lines easily in the same manner as a circuit tester measures resistance.

QTY: Add to Request for quote Request for quote
Specification
Power Source R6 × 4 (1.5 V DC × 4)
Current Consumption 39 mA
Reading Direct reading meter, unit: Ω
Measurement Range × 1 range: 5 Ω - 1 kΩ
× 10 range: 50 Ω - 10 kΩ
× 100 range: 500 Ω - 100 kΩ
Accuracy ±10 %
Oscillation Frequency 1 kHz, ±10 %
Battery Life When Continuously Used × 1 range: 30 h
× 10 range and × 100 range: 60 h
Operating Temperature -5 ℃ to +40 ℃ (23 ゜F to 104 ゜F)
Dimensions 120 (W) × 220 (H) × 63 (D) mm (4.72" × 8.66" × 2.48") (carrying case)
110 (W) × 180 (H) × 58 (D) mm (4.33" × 7.09" × 2.28") (unit only)
Finish ABS resin, black
Weight 700 g (1.54 lb) (including carring case, without batteries)
Accessory Test leads …1 set
Measurement Category CAT I
