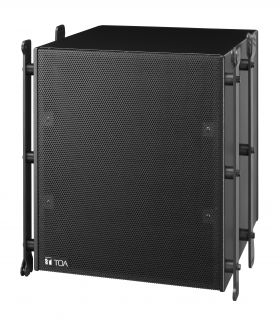

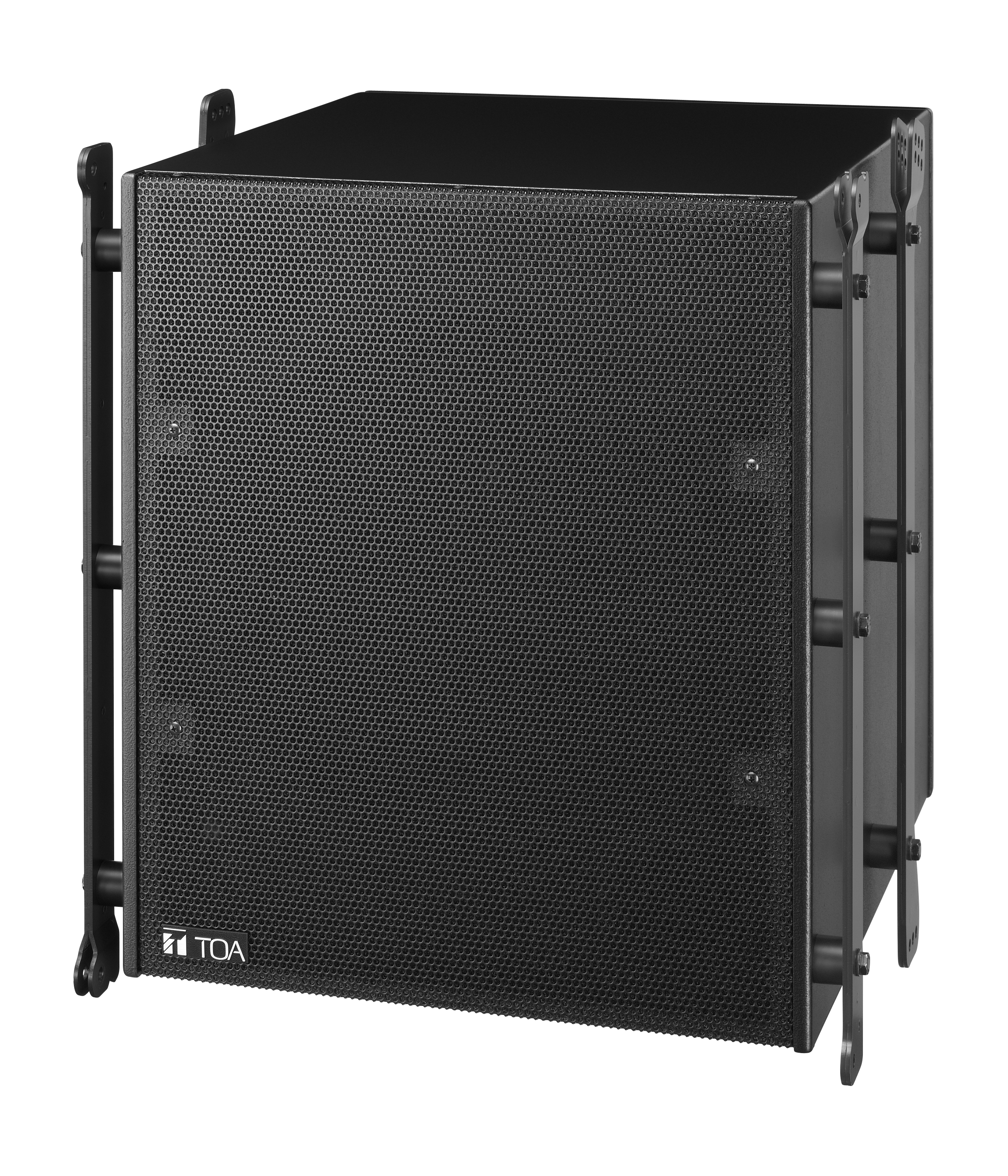

SR-C15BWP Line Array Sub Woofer

SR-C15BWP

The SR-C15BWP Sub-woofer system is designed to be used in conjunction with the SR-C8LWP or SR-C8SWP Line Array Speaker.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous program: 450 W
Dispersion (1 to 4k Hz avg.) 360° Horizontal x 360° Vertical
Rated Impedance 8 Ω
Sensitivity 93 dB (1 W, 1 m)
Frequency Response 40 - 400 Hz (when driven with the optional DP-0206's recommended parameters*)
Crossover Frequency 125 Hz (when driven with the optional DP-0206's recommended parameters*)
Speaker Component 38 cm (15") cone-type
Connected Cable Direct cable withdrawal from internal speaker: φ8.6 mm (φ0.34"),
conductor cross section: 1.25 m㎡ (0.05"), 4-core cable, 3 m (9.84 ft)
Operating Temperature -10℃ to +50℃ (14゜F to 122゜F)
Water Protection IPX4
Finish Enclosure: Plywood, black, urethane coating
Front grille: Punched stainless steel, black, paint
Dimensions 526.6 (W) × 594.8 (H) × 550 (D) mm (20.73" × 23.42" × 21.65")
Weight 41 kg (90.39 lb)
Accessory M8 connection bolt …4
Option Rigging frame: SR-RF8WP
Digital processor: DP-0206*
Digital Mixer: D-901
Digital Mixing Processor Unit: D-2008SP
*DP-0206 is not available in some countries.
