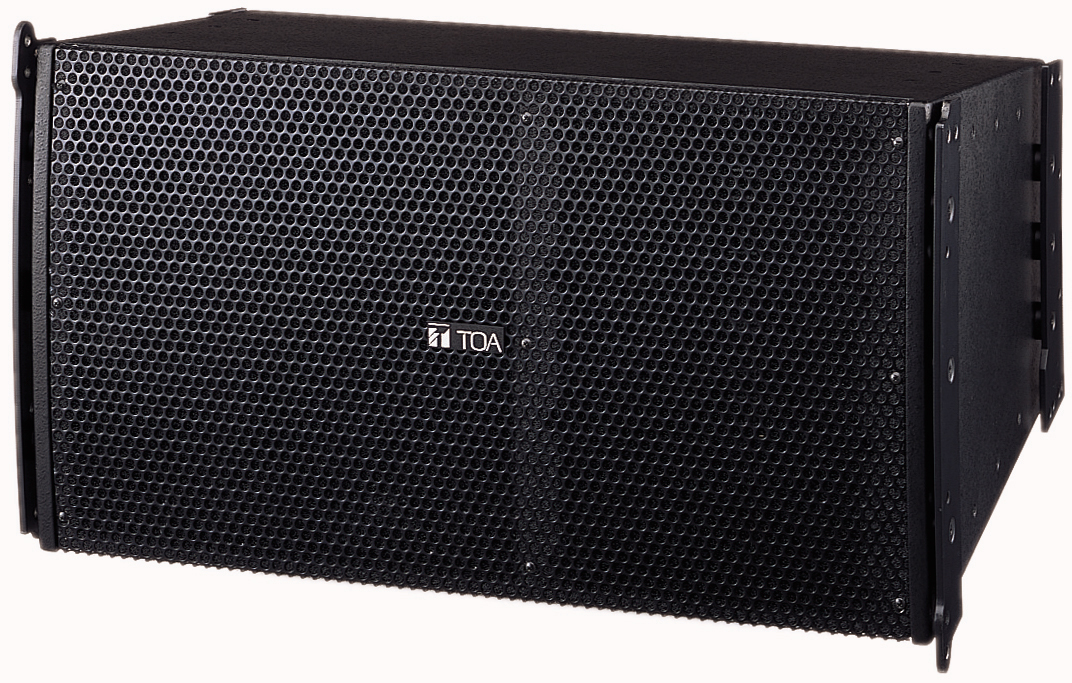

SR-A12S 2-Way Line Array Speaker System

SR-A12S

Featuring the line arrayed wave front control technology that creates sound fields with uniform sound pressure and high sound clarity, the SR-A12S is a two-way line array speaker ideal for short distance sound transmission. The SR-A12S employs the multi-amplifier drive system and is designed to be used in conjunction with the optional DP-0206 Digital Processor, D-901 Digital Mixer or D-2000 Digital Mixing System.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous program Low frequency: 450 W, High frequency: 180 W
Rated Impedance Low frequency: 8 Ω, High frequency: 16 Ω
Dispersion (1 to 4k Hz avg.) 146° Horizontal  x  40° Vertical
Sensitivity Low frequency: 98 dB (1 W, 1 m), High frequency: 109 dB (1 W, 1m)
Frequency Response 50 - 20,000 Hz (when using DP-0206* (option))
Crossover Frequency 1,000 Hz (when using DP-0206* (option))
Directivity Angle Horizontal: 90゜, Vertical: 15゜
Speaker Component Low frequency: 30 cm cone-type
High frequency: Wave front control horn 90゜ (horizontal) × 15゜ (vertical)
+ compression driver × 2
Input Connector M5 screw terminal, distance between barriers: 12.2 mm
and Neutrik NL4MP × 2
Finish Enclosure: Plywood, black, paint
Front grille: Punched steel plate, black, acrylic paint
Dimensions 740 (W) × 433 (H) × 467 (D) mm
Weight 47 kg (including accessories)
Accessory Joint plate …2, Joint plate mounting bolt (M10) …16
Option Rigging frame: SR-RF12
Digital Mixer: D-901
Digital Mixing Processor Unit: D-2008SP
