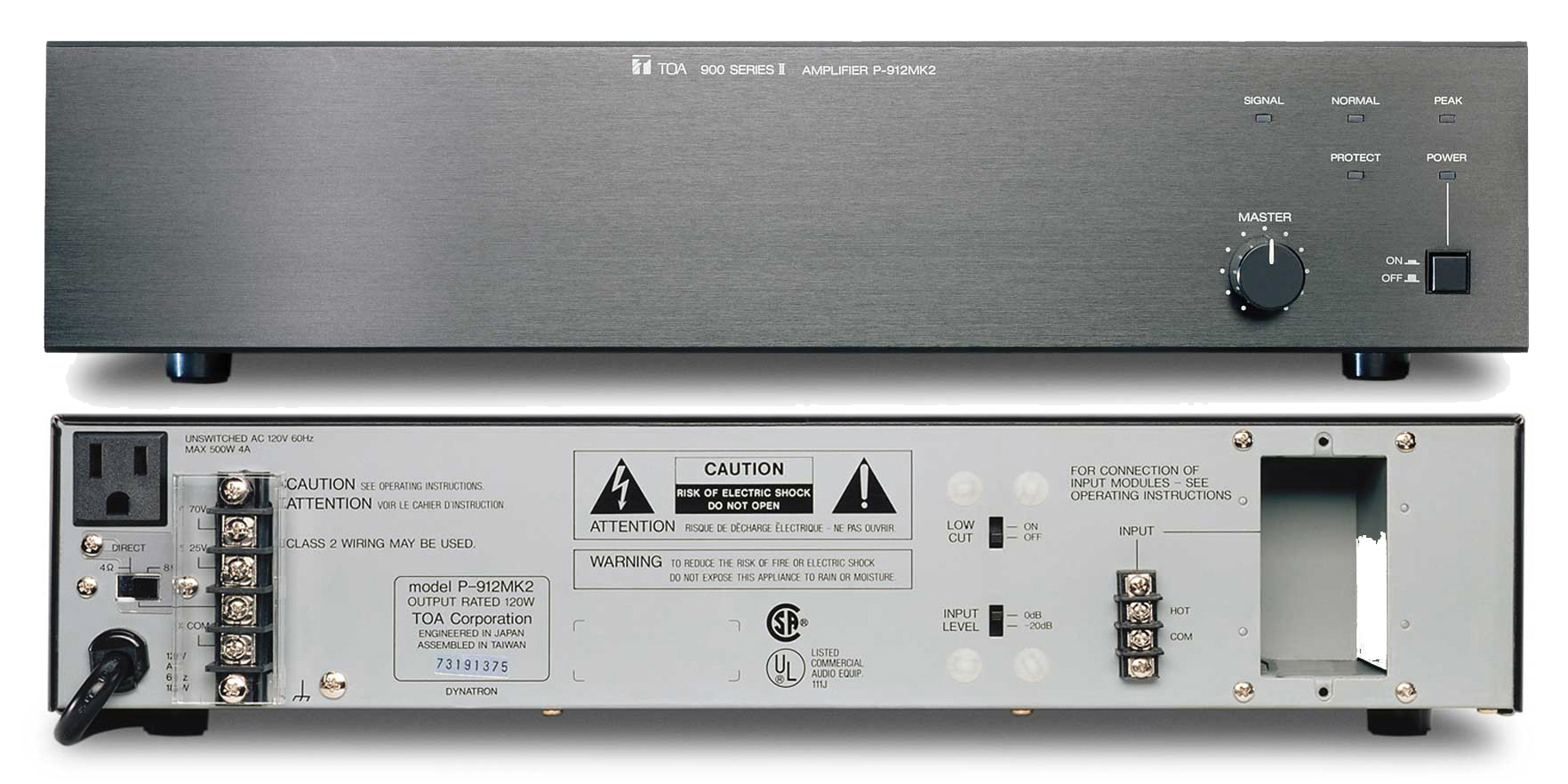

P-912MK2 Power Amplifier

P-912MK2

The P-912MK2 Power Amplifier delivers up to 120 watts of output power. The power amplifier has an input port to accept one plug-in module.



QTY: Add to Request for quote Request for quote
Specification
Type Power amplifier
Power Requirement AC mains, 120 V, 60 Hz
Power Consumption 180 W
Output Power 120 W RMS
Power Band Width (D) 20 〜 20,000 Hz, 0.5% THD
(T) 50 〜 20,000 Hz, 0.5% THD
Frequency Response (D) 20 〜 20,000 Hz, ±1 dB
(T) 20 〜 15,000 Hz, ±1 dB, (T) 20 〜 20,000 Hz, +1 dB, -3 dB
T.H.D 0.01% at 1 kHz, rated output
Inputs One Input Port : Port accepts any input module expect T-01.
One Direct Input
※ Use of direct input prohibits use of modular input port.
Input Sensitivity /Impedance Input Port : 100 mV or 1000 mV (switchable)/10 kΩ
Direct Input : 100 mV or 1000 mV (switchable)/10 kΩ
Outputs(T)=Transformer (D)=Direct Main (T) : 8 Ω, 25 and 70 volts, balanced
Main (D) : 4 Ω, unbalanced
Output Regulation(1kHz) (D) Less than 0.5 dB, no load to full load
(T) Less than 1.0 dB, no load to full load
S/N Ratio(Band Pass 20 〜 20,000 Hz) Input level switch in 0 dBV (1000 mV) position : 108 dB
Input level switch in -20 dBV (100 mV) position : 90 dB
Controls 1 Input gain control 1 Input level switch
1 Power ON/OFF switch 1 Low-Cut switch
Indicators 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
Protection Self-protection, with AC fuse (inside)
Connectors Input : Card-edge connector and screw-terminal strip
Output : Screw-terminal strip
AC outlet : 3-pin grounding type
AC power cord/plug : SJT, 3-prong type
Temperature Range -10℃ 〜 +60℃ (12゜F 〜 140゜F)
Finish Black
Dimensions(W×H×D) 420(16.54") × 99.1(3.90") × 358(14.09") mm
Weight 10.9 kg (24.03 lb.)
Accessory Volume control cover (YA-920)……1
Option Rack mounting bracket (MB-25B)
