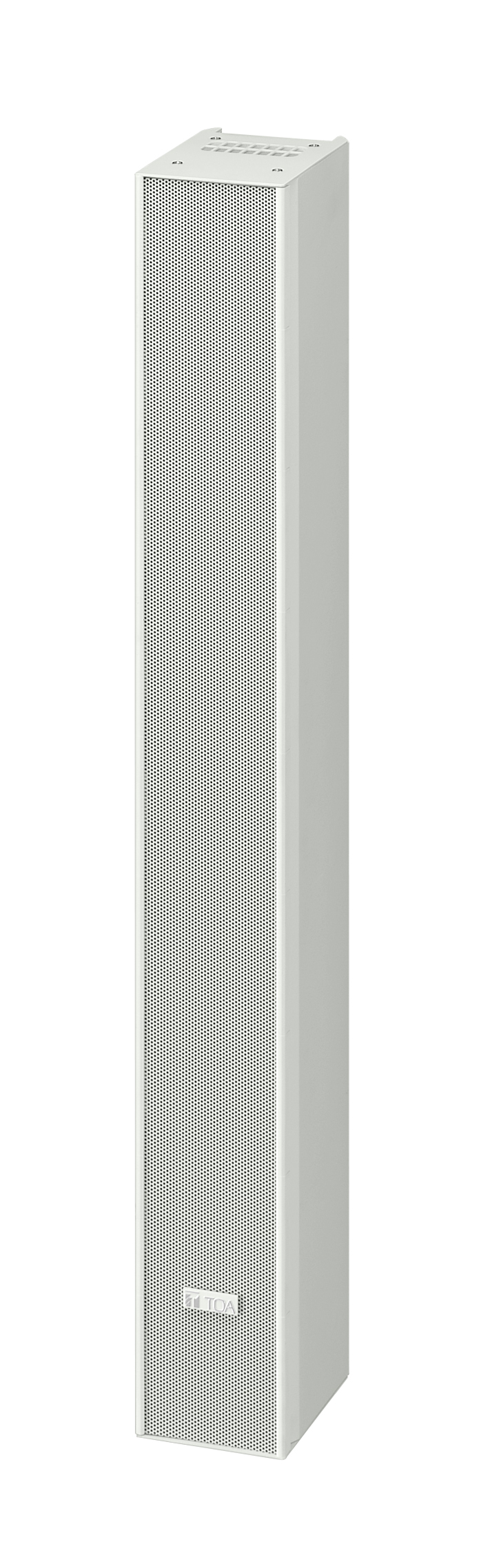

SR-H2L Line Array Speaker

SR-H2L

The SR-H2L Line Array Speaker forms a linear sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching Transformer.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous program: 180 W
Rated Impedance 8 Ω
Sensitivity 92 dB (1 W, 1 m equivalent, measured at 4 m)
Frequency Response 80 - 18,000 Hz (when using an optional digital processor)
Directivity Angle Horizontal: 90゜, Vertical: 0゜ (within the range of speaker height)
Speaker Component 7 cm (2.8") cone-type × 9
Input Connector Removable input connector
Finish Enclosure: MDF, white, urethane paint
Front grille: Punched steel plate, white, acrylic paint
Dimensions 84 (W) × 668.4 (H) × 115 (D) mm (3.31" × 26.31" × 4.53")
Weight 4.4 kg (9.7 lb)
Option Matching transformer: MT-S0301
Extension plate: SR-EP3
Wall mounting bracket: SR-WB3
Wall tilt bracket: SR-TB3
Flying bracket: SR-FB3
Stand adapter: SR-SA3 (Applicable stand: ST-33B)
