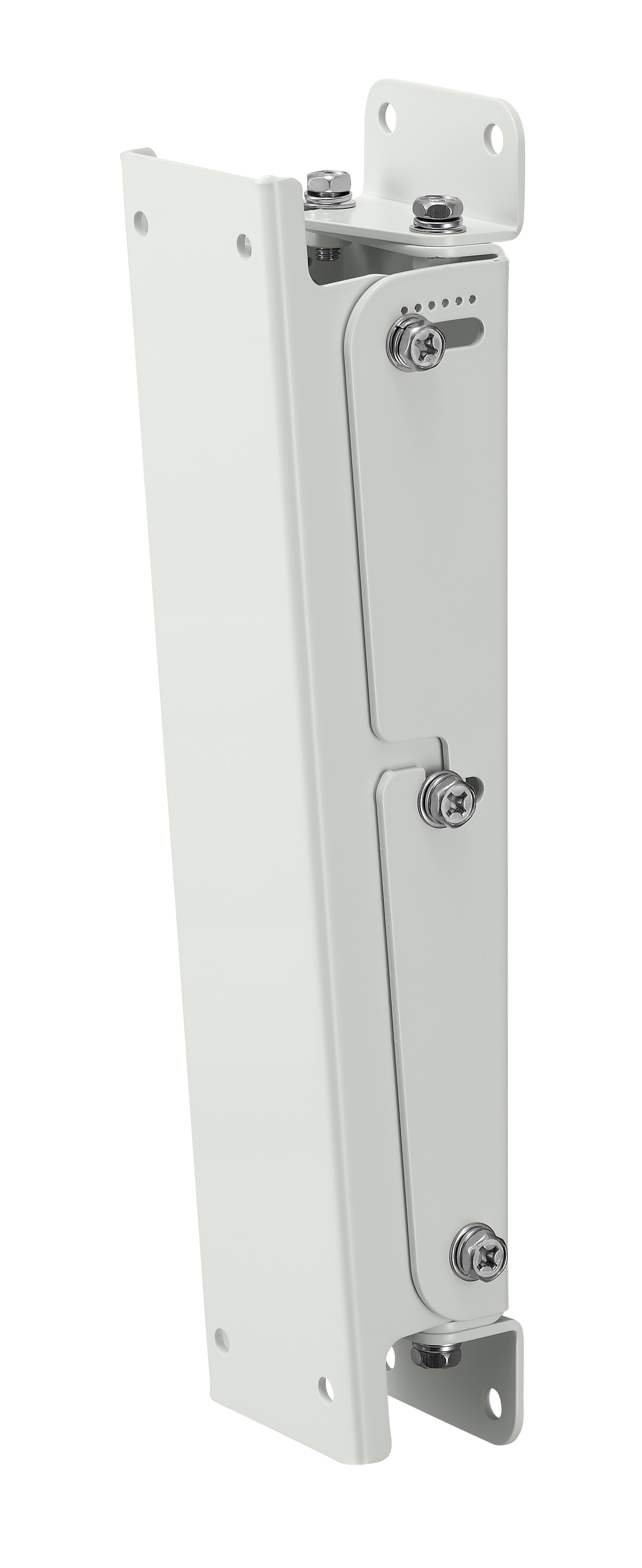

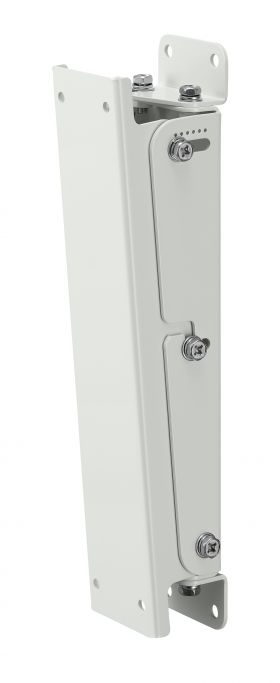

SR-TB3 Wall Tilt Bracket

SR-TB3

The SR-TB3 is a Wall Tilt Bracket designed to install the Line Array Speaker flat against the wall. The downward angle can be set to 0゜ - 5゜, and the horizontal angle to up to 15゜.



QTY: Add to Request for quote Request for quote
Specification
Applicable Speaker SR-H3S, SR-H3L, SR-H2S, SR-H2L
Finish Steel plate, white, paint
Dimensions 64 (W) × 296 (H) × 50 (D) mm (2.52" × 11.65" × 1.97")
Weight 1.4 kg (3.09 lb)
Product Composition Speaker mounting bracket …2, Bracket A …1, Bracket B …1, Joint bracket …1
Accessory Bracket assembling bolt (hex bolt M6 × 16 (with washer)) …10,
Speaker mounting bolt (hex bolt M5 × 25 (with washer)) …4
