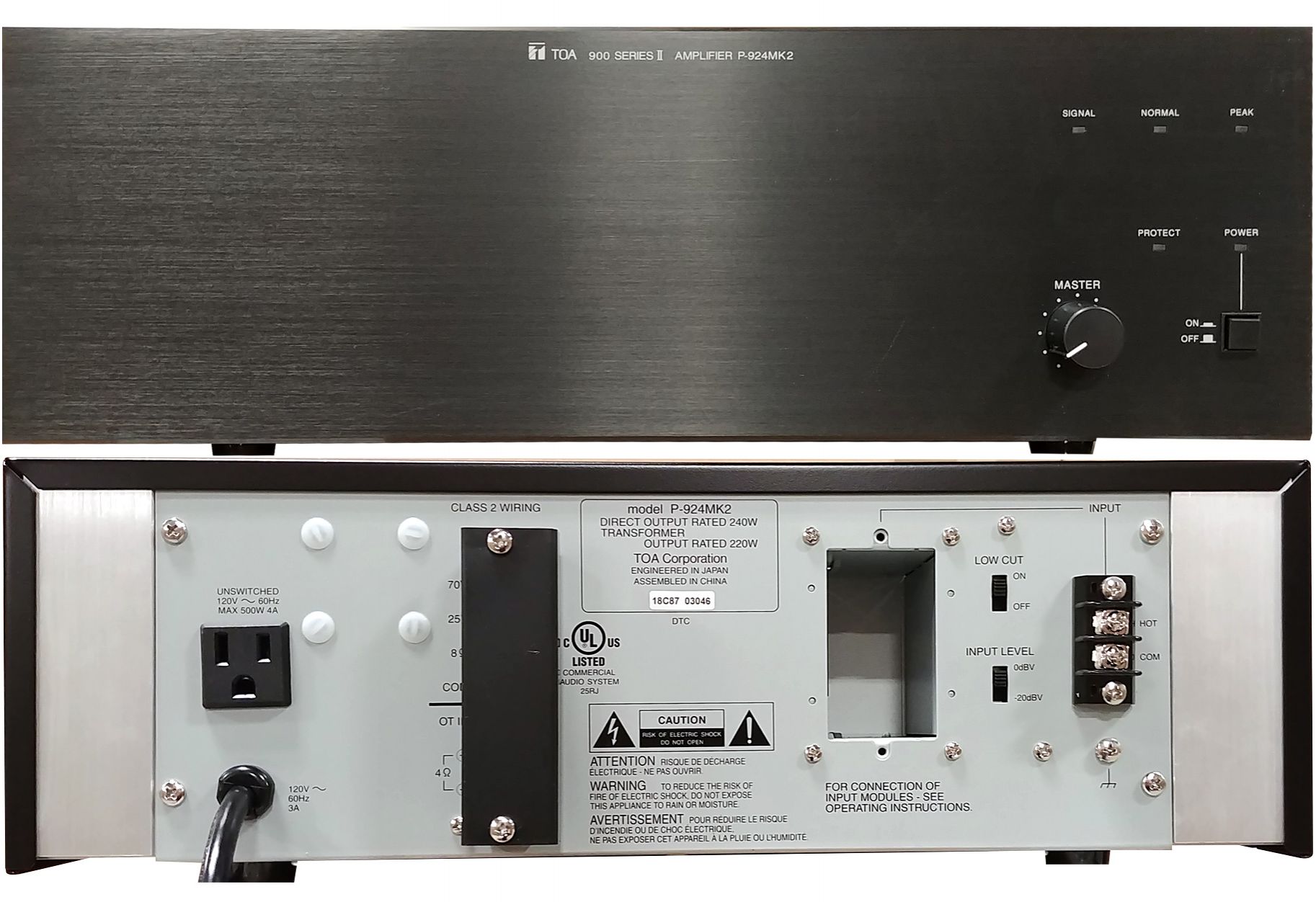

P-924MK2 Power Amplifier

P-924MK2

The P-924MK2 Power Amplifier delivers up to 240 watts (Direct)/220 watts (Transformer) of output power. The power amplifier has an input port to accept one plug-in module.



QTY: Add to Request for quote Request for quote
Specification
Type Power amplifier
Power Requirement AC mains, 120 V, 60 Hz
Power Consumption 120 V /3 A
Output Power (D) 240 W RMS
(T) 220 W RMS
Power Band Width (D) 20 - 20,000 Hz, 0.5 % THD
(T) 50 - 20,000 Hz, 0.5 % THD
Frequency Response (D) 20 - 20,000 Hz, ±1 dB
(T) 20 - 15,000 Hz, ±1 dB, (T) 20 - 20,000 Hz, +1 dB, -3 dB
T.H.D 0.01 % at 1 kHz, rated output
Inputs One Input Port: Port accepts any input module exept T-01.
One Direct Input
※ Use of direct input prohibits use of modular input port.
Input Sensitivity /Impedance Input Port: 100 mV or 1000 mV (switchable)/10 kΩ
Direct Input: 100 mV or 1000 mV (switchable)/10 kΩ
Outputs(T)=Transformer (D)=Direct Main (T): 8 Ω, 25 and 70 volts, balanced
Main (D): 4 Ω, unbalanced
Output Regulation(1kHz) (D) Less than 0.5 dB, no load to full load
(T) Less than 1.0 dB, no load to full load
S/N Ratio(Band Pass 20-20,000Hz) Input level switch in 0 dBV (1000 mV) position: 108 dB
Input level switch in -20 dBV (100 mV) position: 90 dB
Controls 1 Input gain control 1 Input level switch
1 Power ON/OFF switch 1 Low-Cut switch
Indicators 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
Protection Self-protection, with 2AC fuses and 2DC fuses (inside)
Connectors Input: Card-edge connector and screw-terminal strip
Output: Screw-terminal strip
AC outlet: 3-pin grounding type
AC power cord/plug: SJT, 3-prong type
Temperature Range -10 ℃ to +60 ℃
Finish Black
Dimensions 420 (W) × 151.3 (H) × 334.2 (D) mm
Weight 19.5 kg
Accessory Volume control cover (YA-920)……1
Option Rack mounting bracket (MB-35B)
