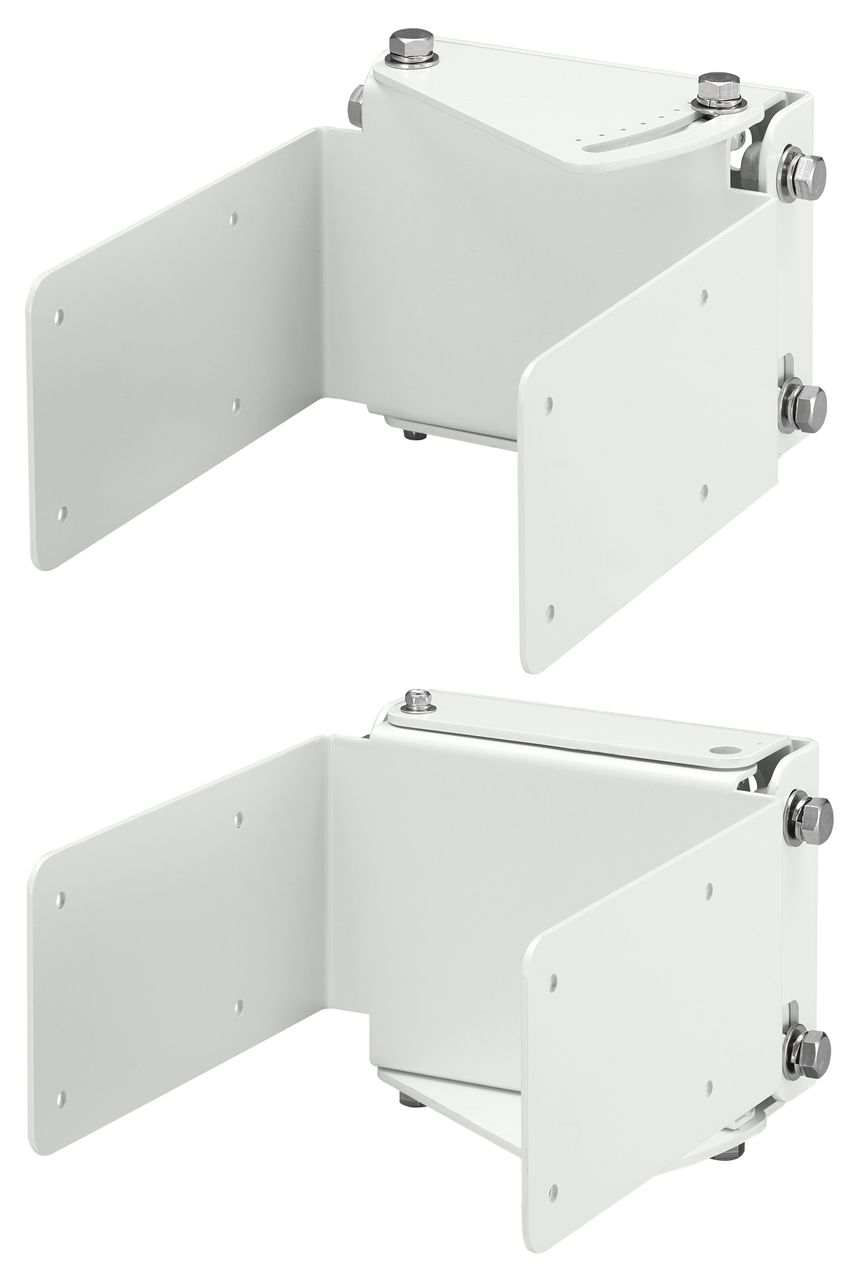

SR-WB4 Wall Mount Bracket

SR-WB4

The SR-WB4 bracket is used to mount the SR-S4L Line array speaker upright to the wall.

QTY: Add to Request for quote Request for quote
Specification
Number of Speakers to be Mounted Max. 2 (when jointed with an optional SR-EP4)
Finish Steel plate, white, paint
Weight 4.6 kg (including accessories)
Product Composition Speaker mounting bracket A …1, Speaker mounting bracket B …1,
Bracket base …2
Accessory Speaker mounting screw (M5 upset head) …16,
Bracket assembling screw (M8 upset head) …8
Option Extension plate: SR-EP4
