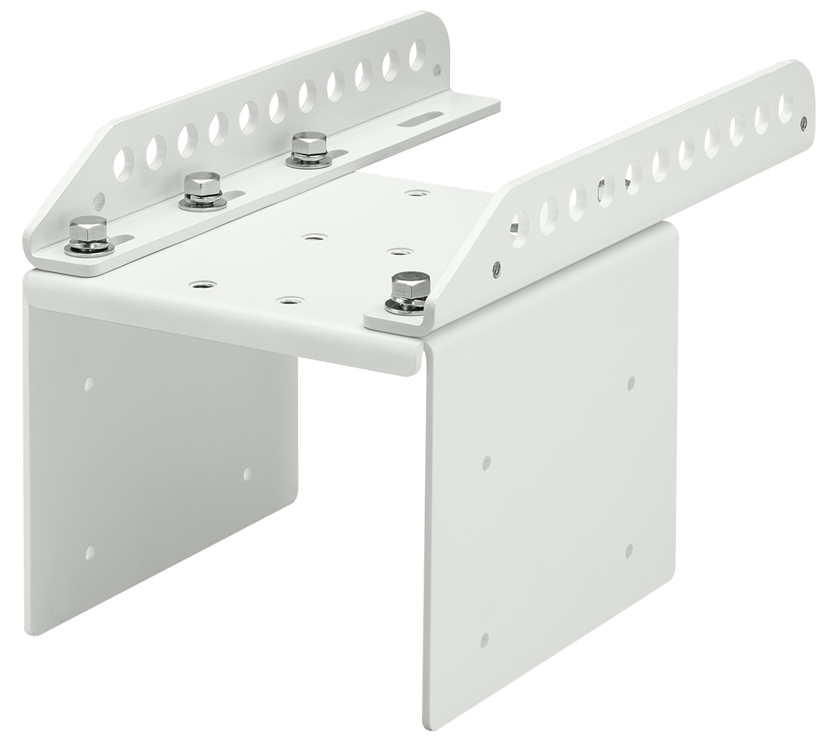

SR-FB4 Flying Bracket

SR-FB4

The SR-FB4 is designed to be used to suspend the Line Array Speaker system SR-S4L or SR-S4S.

QTY: Add to Request for quote Request for quote
Specification
Number of Speakers to be Suspended Max. 3 (when jointed with an optional SR-EP4)
Finish Steel plate, white, paint
Dimensions 168 (W) × 170 (H) × 284 (D) mm (complete assembly)
Weight 2.9 kg (including accessories)
Product Composition Suspension bracket A …1, Suspension bracket B …1, Speaker mounting bracket …1
Accessory Suspension bracket mounting screw (M8 upset head) …6,
Speaker mounting screw (M5 upset head) …8, Suspension bracket assembling screw …2,
Suspension bracket assembling washer … 1 set
Option Extension plate: SR-EP4
