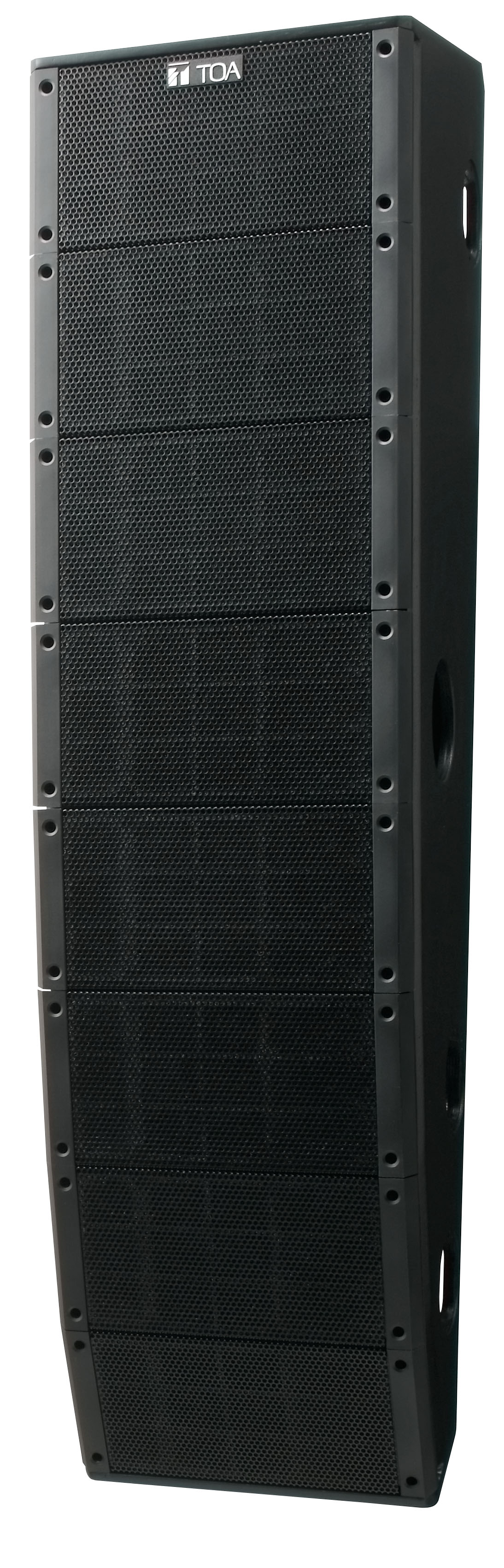

SR-T5 Line Array Speaker

SR-T5

The SR-T5 is a 2-way Line Array speaker in which woofers and tweeters are arranged vertically in close proximity to each another. Its excellent speech clarity makes it ideal for installation in sports facilities with strong reverberation, such as gymnasiums. Sturdy impact-resistant construction allows the speaker to be used as a main speaker in small- or medium-scale indoor sports facilities.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous pink noise: 250 W
Continuous program: 750 W
Rated Impedance 8 Ω
Sensitivity 96 dB (1 W, 1 m equivalent, measured at 4 m)
Frequency Response 70 Hz - 20 kHz
Crossover Frequency 3 kHz
Directivity Angle Horizontal: 100゜
Vertical: 35゜
Speaker Component Low frequency: 13 cm (5.12") cone-type × 8
High frequency: Balanced dome-type × 24
Recommended Installation Height 4 - 5.5 m (13.12 - 18.04 ft)
(Speaker top, when installed in sport facilities 30 m (98.43 ft) in length)
Adjustable Angle Range Downward: 0゜, 1゜, 2゜, 3゜ (when the supplied mounting bracket is used)
Horizontal (left or right): 5゜, 10゜ (when the optional SR-PB5 Wall Pan Bracket
Input Terminal M5 screw terminal, distance between barriers: 12.2 mm (0.48")
Finish Enclosure: Plywood, black, urethane paint
Baffle: Polypropylene, black
Punched net: Steel plate, black, acrylic paint
Mounting bracket: Steel plate, black, acrylic paint
Dimensions 310 (W) × 1239 (H) × 341 (D) mm (12.2" × 48.78" × 13.43")
Weight 29 kg (63.93 lb) (including accessories)
Accessory Mounting bracket A …1, Mounting bracket B …1, Bracket mounting bolt …6,
Side cover …5, Side cover mounting screw …10, Eye bolt …1, Safety wire …1
Option Wall pan bracket: SR-PB5
(to be used in conjunction with the supplied mounting bracket)
Matching transformer: MT-S0601
