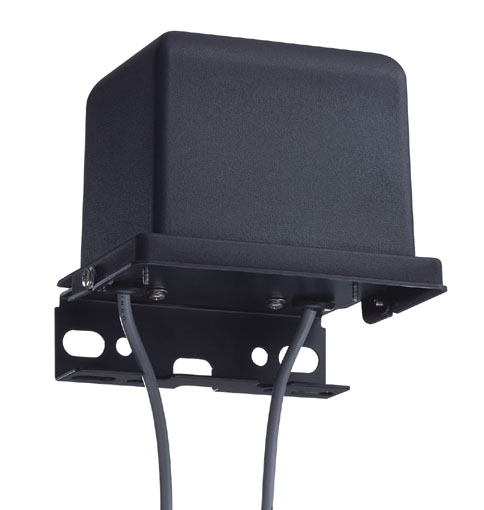

MT-200 Matching Transformer

MT-200

The MT-200 is a matching transformer for the HX-5 and HX-7 series speaker systems, and can be used both indoors and outdoors.



QTY: Add to Request for quote Request for quote
Specification
Rated Input 200 W
Primary Impedance 100 V line: 50 Ω (200 W), 83 Ω (120 W), 167 Ω (60 W)
70 V line: 25 Ω (200 W), 50 Ω (100 W), 83 Ω (60 W), 167 Ω (30 W)
Secondary Impedance 8 Ω
Water Protection IPX4 (the tilt angle must be within 45゜) *
Finish Cover: Polypropylene
Mounting bracket: Stainless steel (SUS304)
Dimensions 164 (W) × 141 (H) × 129 (D) mm
Weight 2.8 kg
Accessory Speaker mounting bolt (M8) with washer …2
Note: When the matching transformer is installed on the HX-5
