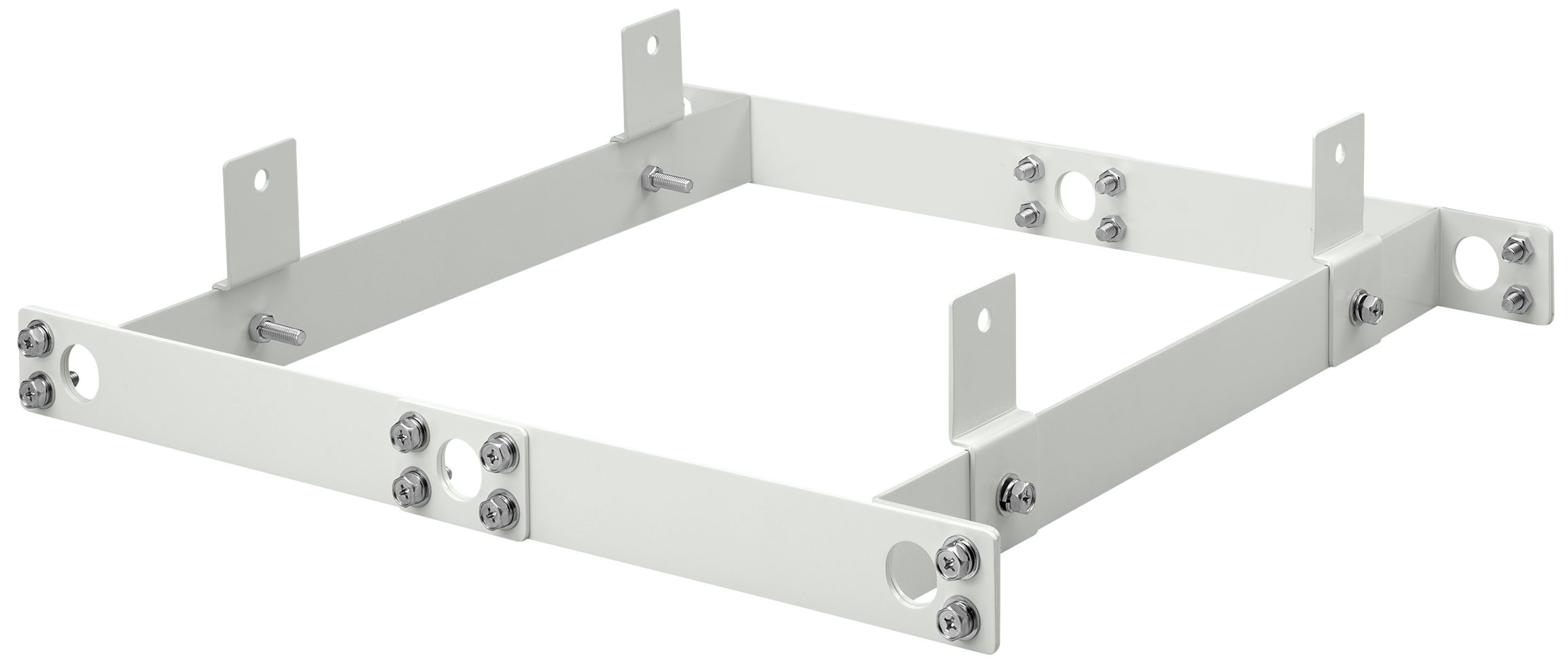

HY-PF1W Rigging Frame

HY-PF1W

The HY-PF1W is used exclusively to suspend the HX-5 speaker system from the ceiling. The FB-120 series Subwoofer can be suspended using this frame and the frame's supplied mounting brackets. This bracket is designed for indoor use.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, white, semi-gloss paint
Dimensions 550 (W) × 50 (H) × 512 (D) mm
Weight 3.6 kg
Accessory Subwoofer mounting bracket …4, Bracket fixing bolt (M8) with washer …4,
Subwoofer mounting bolt (M8) with washer …4,
Bracket fixing nut (M8) …4, Bracket fixing washer (M8) …4
