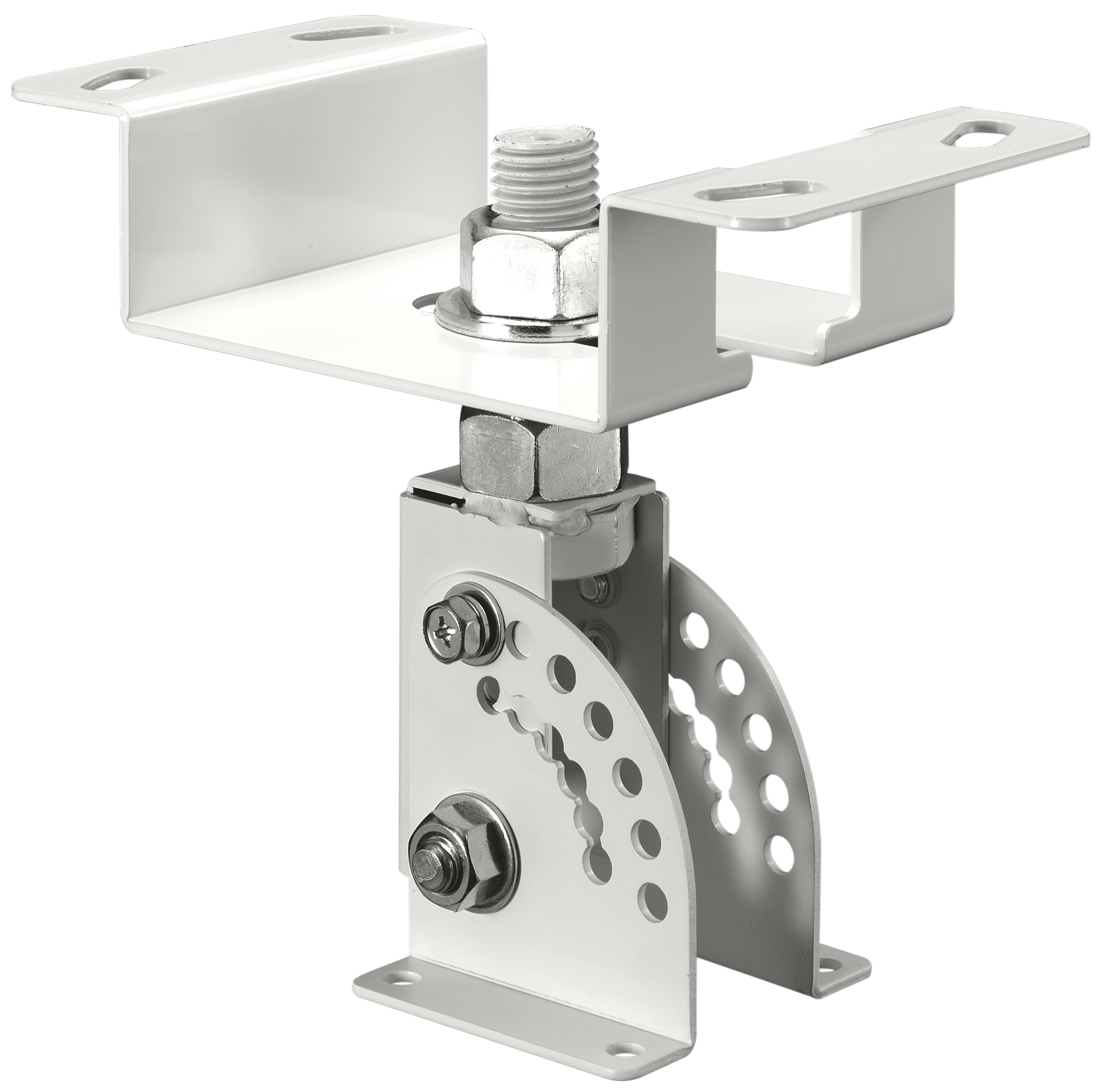

HY-CW1W Ceiling Mount Bracket

HY-CW1W

The HY-CW1W is designed to be used exclusively to mount the HX-5 series speaker system to a ceiling. The speaker can be rotated 360゜ horizontally. It can also be tilted vertically up to 82.5゜ when suspended horizontally, and depending on the speaker directivity mode, up to 67.5゜ (for 60゜ mode) or 75%%d (for 15゜, 30゜ or 45゜ mode) when suspended vertically. This bracket is designed for indoor use.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, white, semi-gloss, paint
Dimensions 120 (W) × 200 (H) × 220 (D) mm
Weight 2 kg
Accessory Speaker rear bracket mounting bolt (M8) with washer …4
