HY-WM2B Mounting Bracket

HY-WM2B

The HY-WM2B is used exclusively to mount the HX-5 series speaker system closely to a wall or ceiling. The bracket helps to achieve clearer sound reproduction by minimizing phase interference generated by sound waves reflecting from walls or ceilings. This bracket is designed for indoor use.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, black, semi-gloss paint
Weight 600 g
Accessory Rear bracket mounting bolt (M8) with washer …4

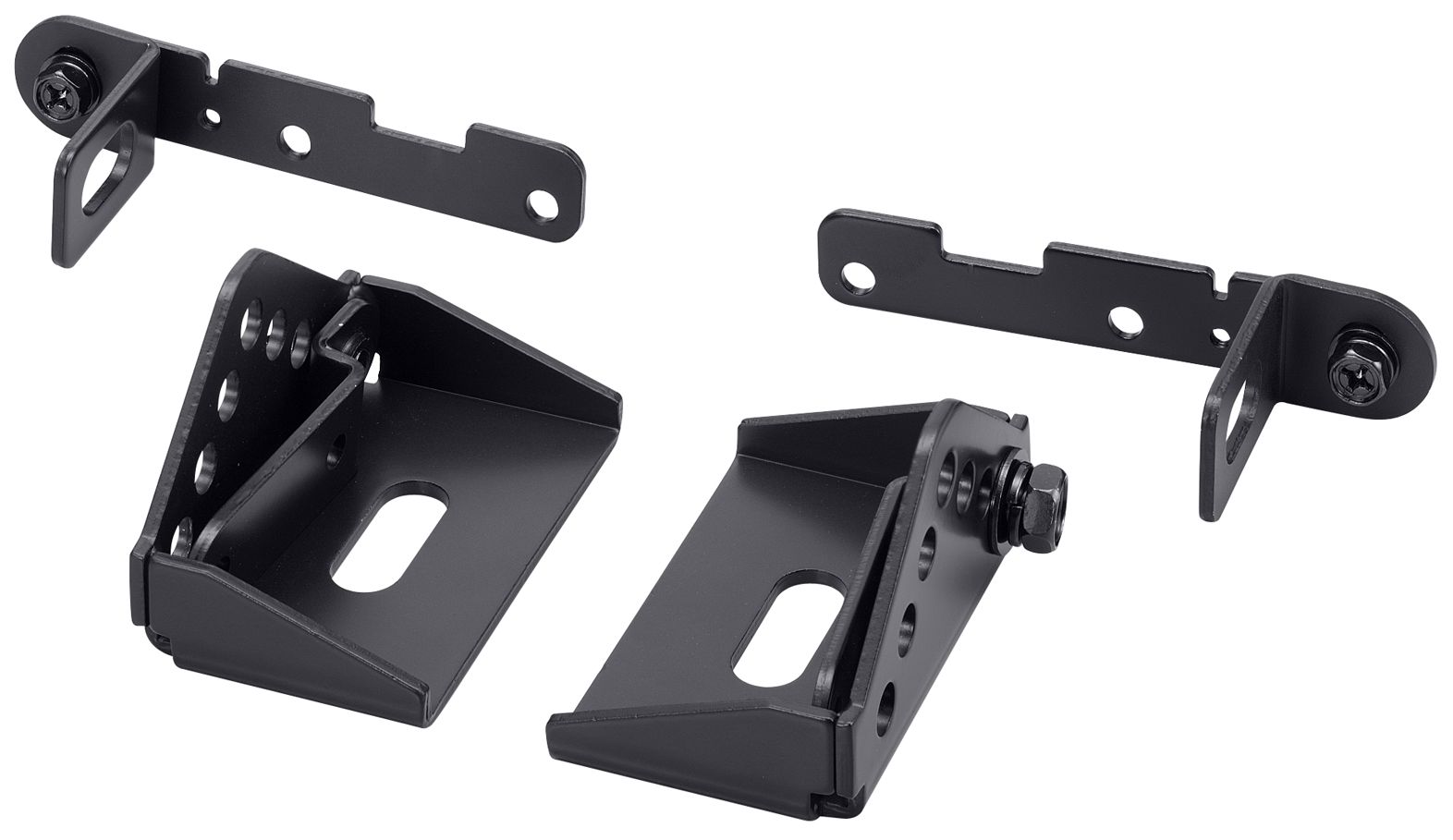

Product Composition Front bracket A, B * …1 each, Rear bracket A, B * …1 each
* Brackets A and B are symmetrical to each other.
