HY-CN1B-WP Extension Bracket

HY-CN1B-WP

The HY-CN1B-WP is used to join 2 HX-5 series speaker systems, typically for the purpose of achieving better speaker directivity control in lower frequencies. Such directivity control helps achieve clearer and longer-rangesound reproduction in locations where sound efficiency may be hampered by conditions like long reverberation time or a high level of background noise. This bracket is designed for outdoor use.



QTY: Add to Request for quote Request for quote
Specification
Finish Stainless steel (SUS304), black, semi-gloss, paint
Weight 200 g

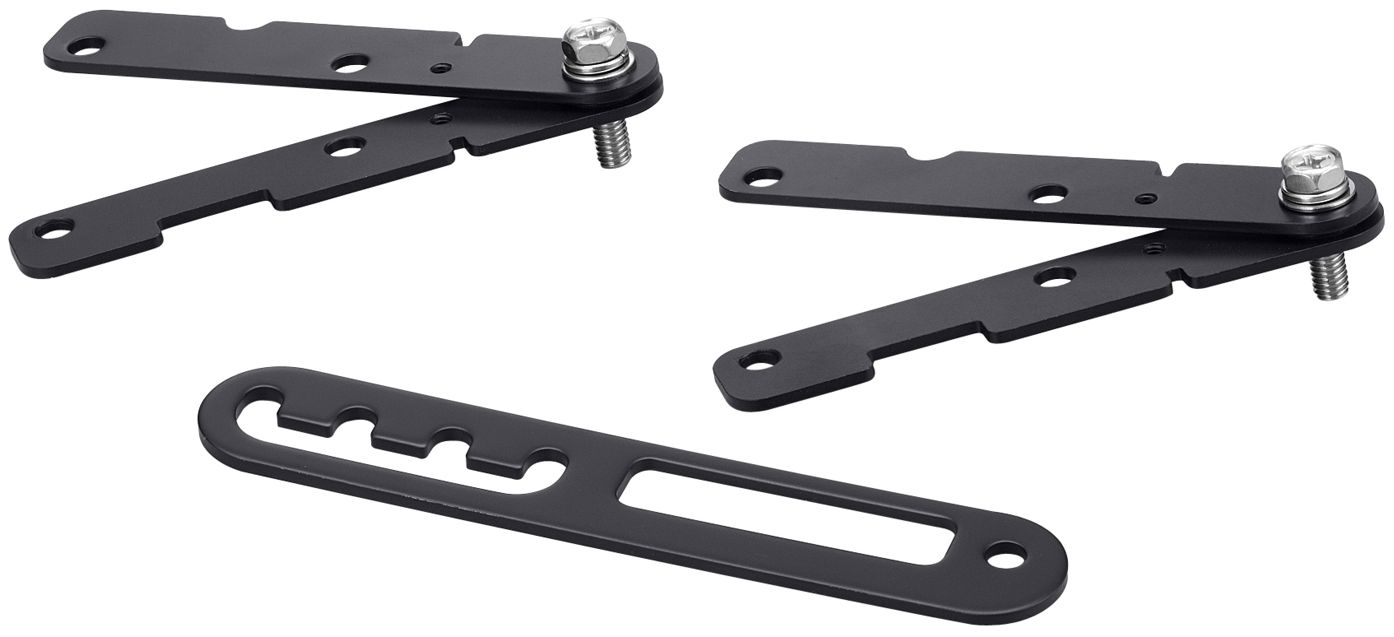

Product Composition Front bar bracket …2, Rear bar bracket …1
Note: Every speaker module must be aimed horizontally or down to keep the weather resistant capability.
