B-01F

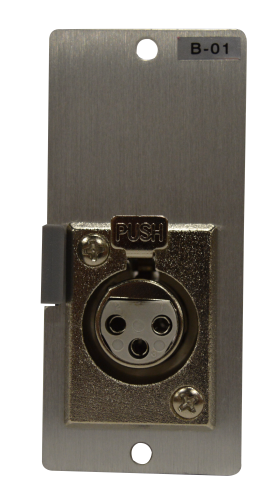

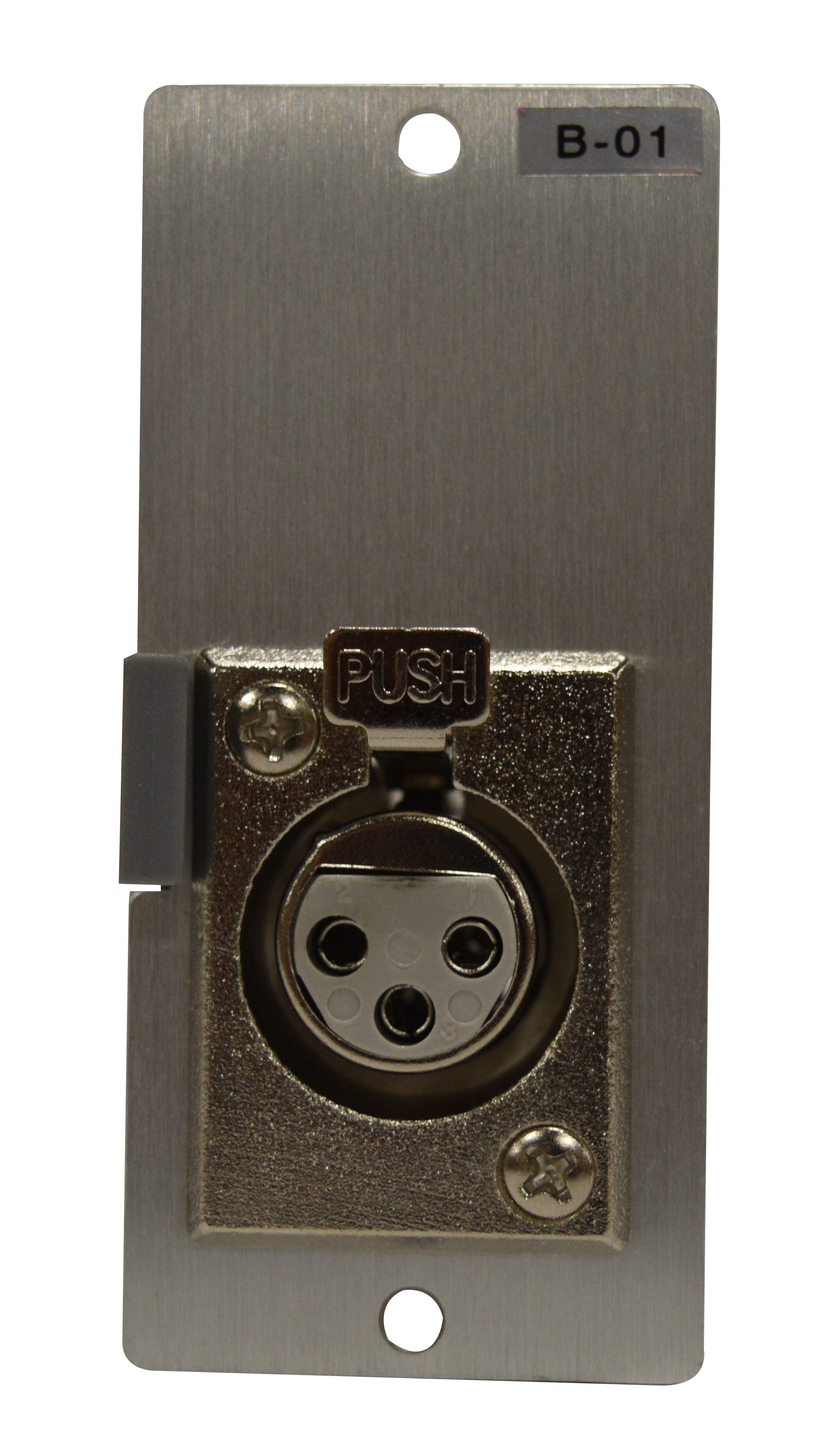

B-01F Balanced Line Input

B-01F

The B-01F is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced line input with female XLR type connector.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB=1 V
Input Sensitivity -18 dB* (Rated output: -20 dB*)
Input Impedance 10 kΩ, balanced transformer-isolated
Frequency Response 20 Hz - 20 kHz %%p1.5 dB
Connector Female XLR connector (XLR-3-31 equivalent)
Dimensions 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
Weight Max. 110 g (0.24 lb)
