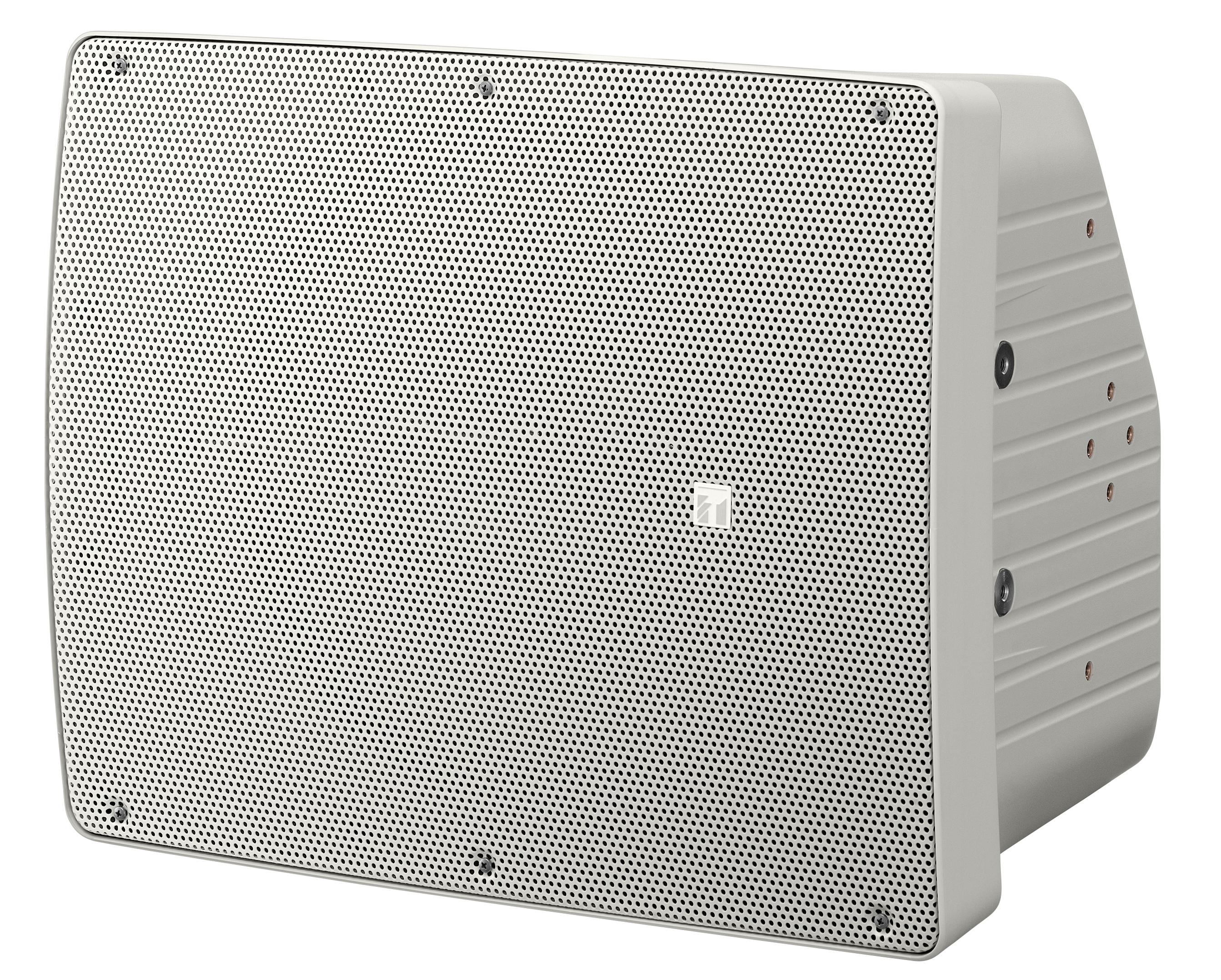

HS-1500WT Coaxial Array Speaker System

HS-1500WT

The HS-1500WT is a 2-way speaker system made of resin, and features a large diameter woofer. It can be installed and used in many different applications with combined use of the supplied accessories and/or the optional mounting brackets.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Sealed type
Rated Input 60 W (High Impedance)
Power Handling Capacity Continuous pink noise: 100 W (Low Impedance)
Continuous program: 300 W (Low Impedance)
Dispersion (1 to 4k Hz avg.) 164° Horizontal x 40° Vertical
Rated Impedance 8 Ω
100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
Sensitivity 98 dB (1 W, 1 m)
Frequency Response 60 - 20,000 Hz
Crossover Frequency 3 kHz
Directivity Angle Horizontal: 90゜, Vertical: 40゜
Speaker Component Low frequency: 38 cm (15) cone-type
Input Terminal NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35)"
Operating Temperature -10℃ to +50℃ (14゜F to 122゜F)
Finish Enclosure: Polypropylene, white
Punched net: Surface-treated steel plate, white
Dimensions 451 (W) × 560 (H) × 400 (D) mm (17.76 × 22.05" × 15.75")"
Weight 14 kg (30.86 lb)
Accessory Handle …1, Handle fitting bracket …2, Handle mounting screw …2, Rubber foot …2,
Rubber foot mounting screw …2
Option Mounting bracket: HY-1500VW (for vertical speaker mounting)
HY-1500HW (for horizontal speaker mounting)
Ceiling mount bracket: HY-C0801W, Wall mount bracket: HY-W0801W
Speaker stand: ST-33B
