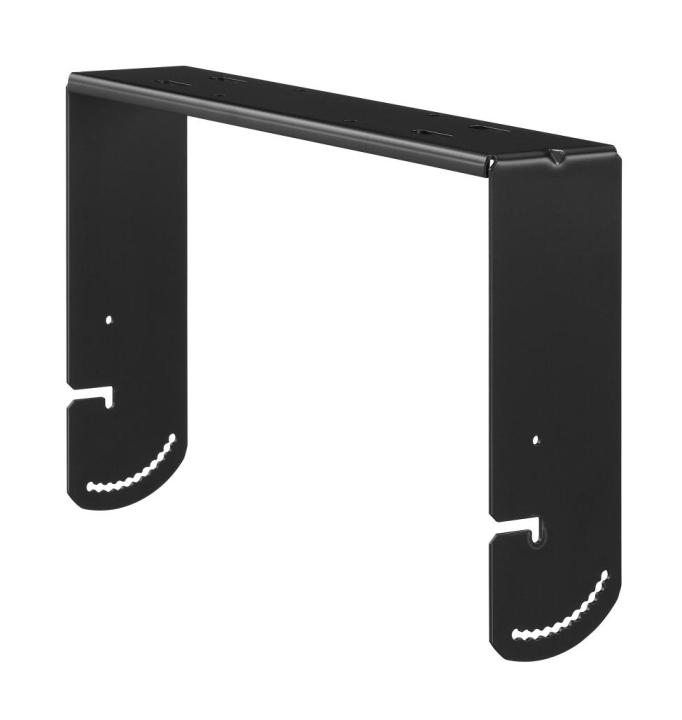

HY-1200HB Mounting Bracket

HY-1200HB

The HY-1200HB Mount Bracket is designed to mount speaker system to a wall or ceiling in a horizontal configuration. It allows the speaker orientation angle to be adjusted from 15゜ upward to 60゜ downward when mounted on a wall, and from 0゜ (horizontal) to 90゜ downward when mounted to a ceiling.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, black, paint
Dimensions 395.4 (W) × 241.5 (H) × 90 (D) mm (15.57 × 9.51" × 3.54")"
Weight 1.9 kg (4.19 lb)
Accessory Bracket holder …2, Bracket holder mounting screw …4, Speaker mounting screw …4,
Nut for the optional bracket …4, Washer for the optional bracket …4
Option Ceiling mount bracket: HY-C0801, Wall mount bracket: HY-W0801
Applicable Speaker (option) HS-120B, HS-1200BT
