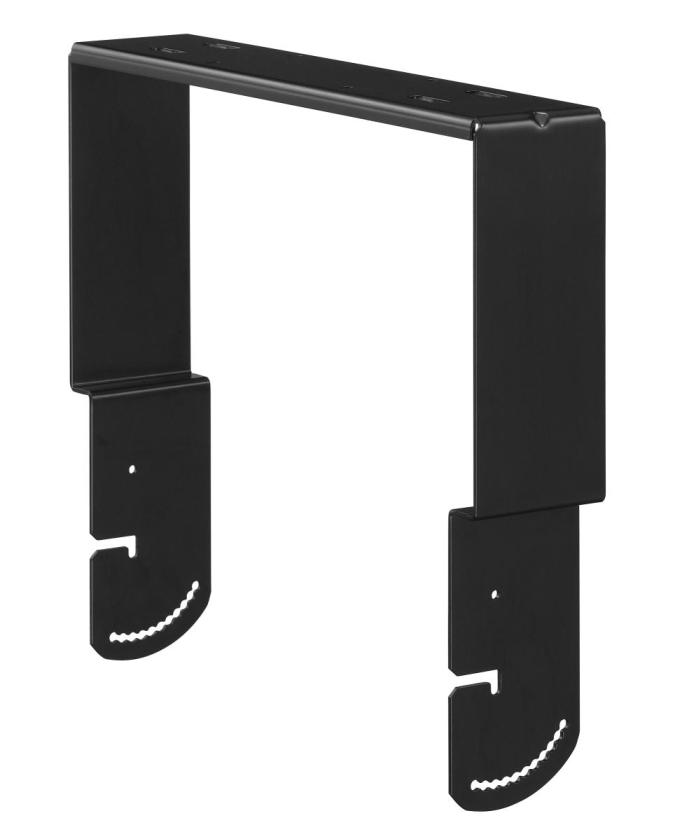

HY-1200VB Mounting Bracket

HY-1200VB

The HY-1200VB Mount Bracket is designed to mount speaker system to a wall or ceiling in a vertical configuration. It allows the speaker orientation angle to be adjusted from 15゜ upward to 60゜ downward when mounted on a wall, and from 15゜ upward to 90゜ downward when mounted to a ceiling.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, black, paint
Dimensions 366.4 (W) × 328.2 (H) × 90 (D) mm (14.43 × 12.92" × 3.54")"
Weight 2.2 kg (4.85 lb)
Accessory Bracket holder …2, Bracket holder mounting screw …4, Speaker mounting screw …4,
Nut for the optional bracket …4, Washer for the optional bracket …4
Option Ceiling mount bracket: HY-C0801, Wall mount bracket: HY-W0801
Applicable Speaker (option) HS-120B, HS-1200BT
