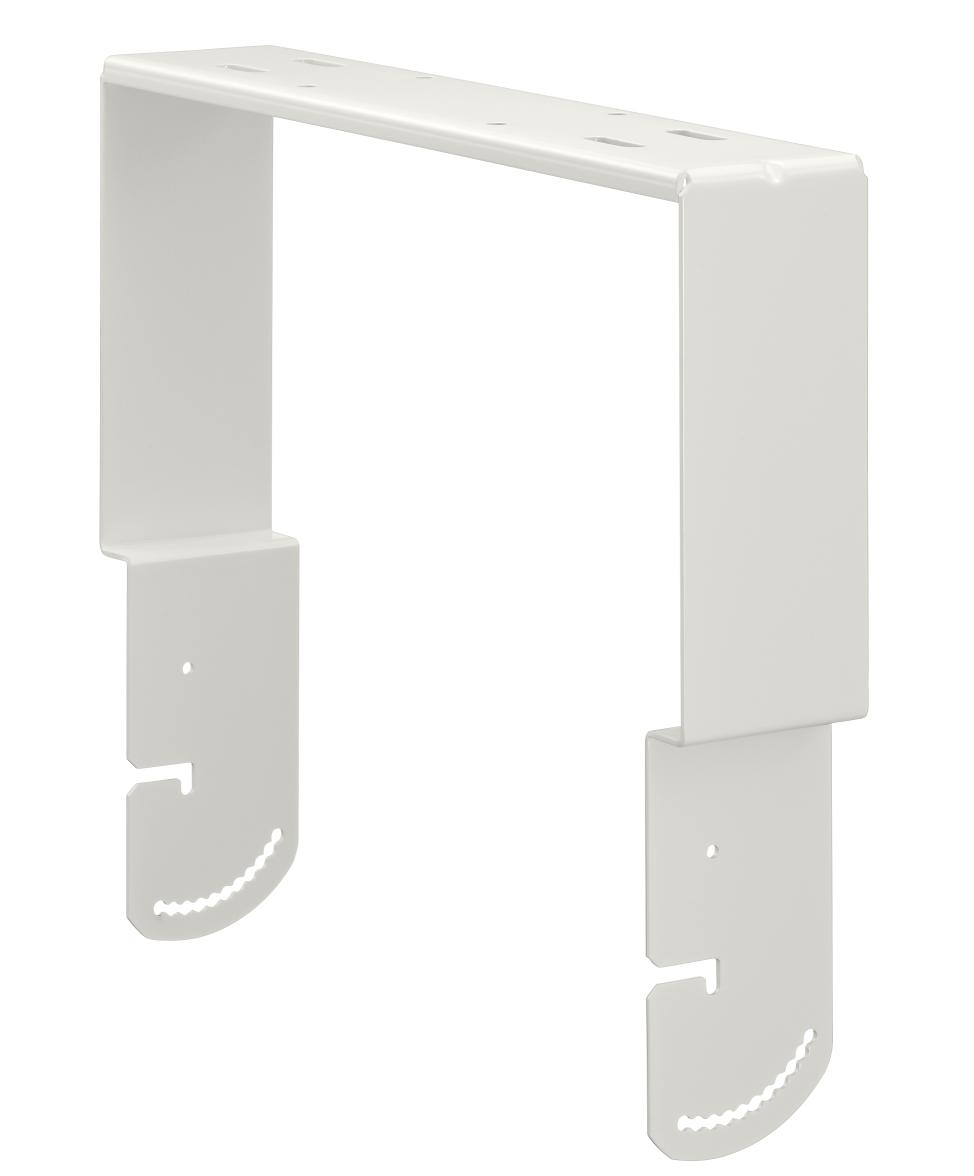

HY-1500VW Mounting Bracket

HY-1500VW

The HY-1500VW Mount Bracket is designed to mount speaker system to a wall or ceiling in a vertical configuration. It allows the speaker orientation angle to be adjusted from 15゜ upward to 60゜ downward when mounted on a wall, and from 15゜ upward to 90゜ downward when mounted to a ceiling.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, white, paint
Dimensions 460.4 (W) × 403.2 (H) × 90 (D) mm (18.13 × 15.87" × 3.54")"
Weight 3 kg (6.61 lb)
Accessory Bracket holder …2, Bracket holder mounting screw …4, Speaker mounting screw …4,
Nut for the optional bracket …4, Washer for the optional bracket …4
Option Ceiling mount bracket: HY-C0801W, Wall mount bracket: HY-W0801W
Applicable Speaker (option) HS-150W, HS-1500WT
