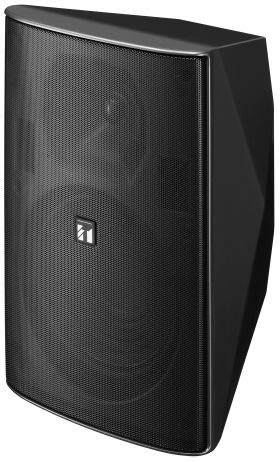

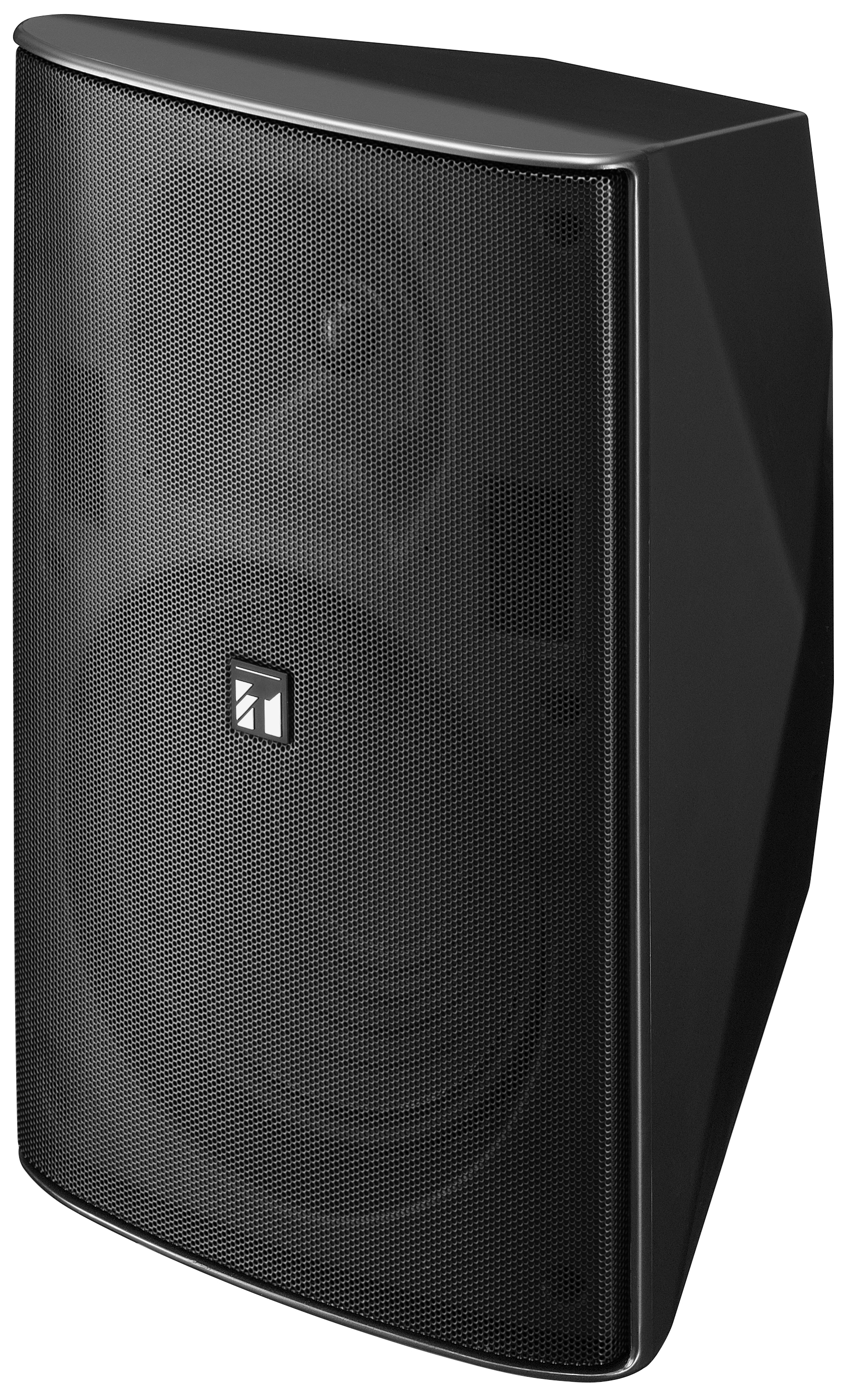

F-1300BT Wide-dispersion Speaker System

F-1300BT

The F-1300 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Bass-reflex type
Rated Input 30 W (high impedance)
Power Handling Capacity continuous pink noise: 50 W (low impedance)
continuous program: 150 W (low impedance)
Rated Impedance 8 Ω
100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Dispersion (1 to 4k Hz avg.) 160° Horizontal,   180° Vertical
Sensitivity 90 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
Crossover Frequency 2 kHz
Directivity Angle Horizontal: 110゜, Vertical: 100゜
Speaker Component Low frequency: 13 cm (5") cone-type
High frequency: 25 mm (1") dome tweeter
Input Terminal Push-in terminal
Finish Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, paint
Joint bracket, wall bracket: Steel plate, t1.6, black, paint
Speaker bracket: Die-cast aluminum, black, paint
Dimensions 162 (W) × 250 (H) × 161 (D) mm (6.38" × 9.84" × 6.34")
Weight 3.6 kg (7.94 lb) (including the supplied brackets)
Accessory Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set
Option Board hanger bracket: HY-BH10B,
Ceiling mount bracket: HY-CM10B (used for the horizontal speaker mounting),
Cluster bracket: HY-CL10B, Speaker stand: ST-16A
