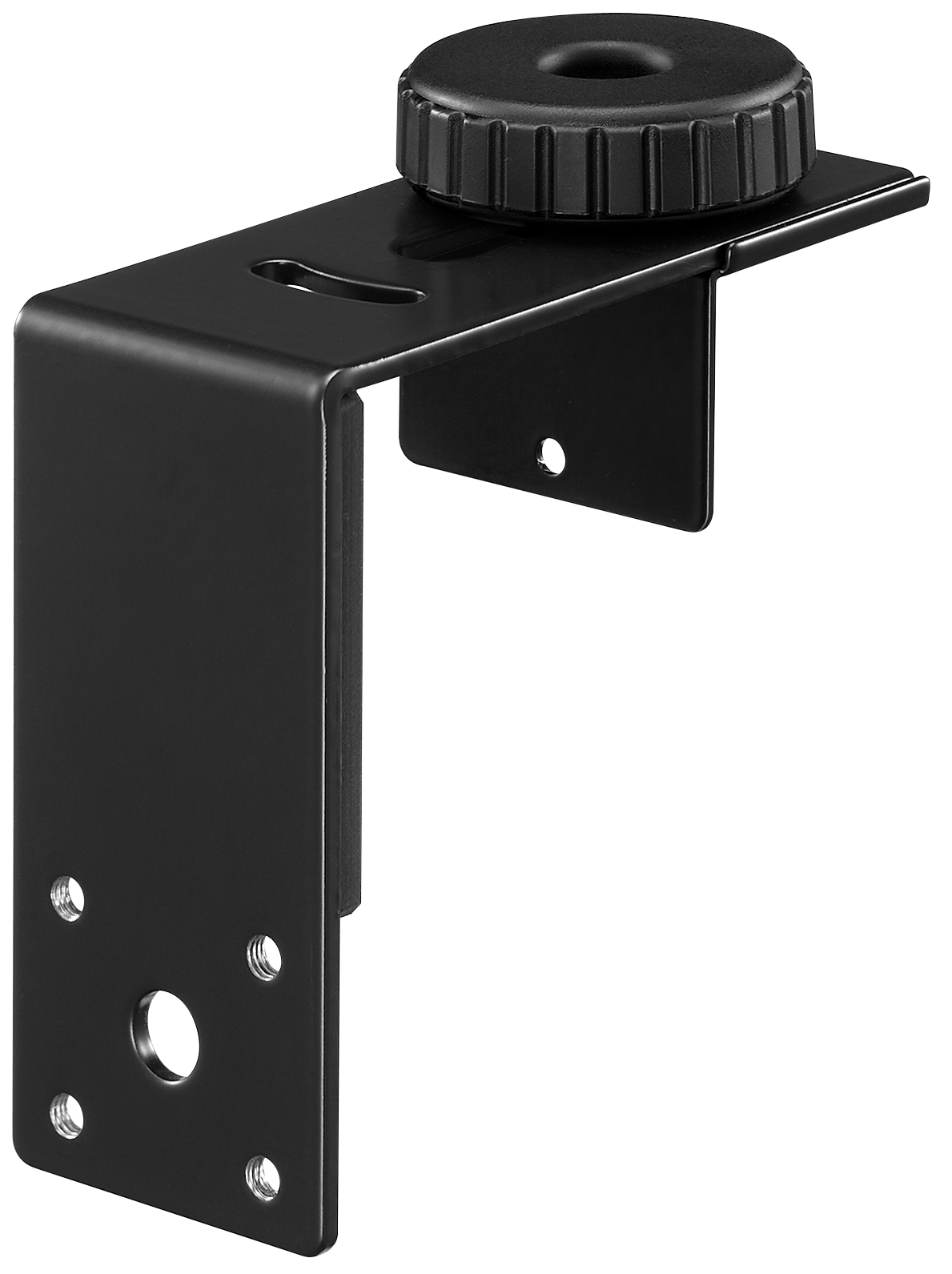

HY-BH10B Board Hanger Bracket

HY-BH10B

The HY-BH10B Board Hanger Bracket is used to mount F-1000 Series or F-1300 Series speakers to a temporarily installed partition board. The speaker can be installed in either a vertical or horizontal orientation.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, black, paint
Dimensions 48 (W) × 100 (H) × 108 (D) mm (1.89" × 3.94" × 4.25") (excluding knob bolt)
Weight 210 g (0.46 lb)
Product Composition Hanger bracket …1, Sliding bracket …1, Knob bolt …1,
Plain washer for knob bolt …1, Speaker mounting bracket (with washer) …4
