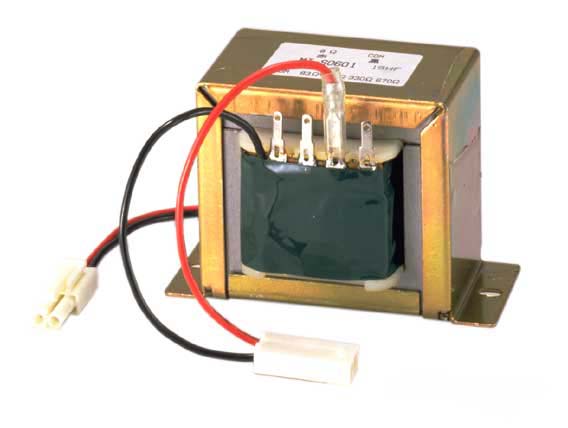

MT-S0601 Matching Transformer

MT-S0601

The MT-S0601 is a matching transformer for low frequency drivers S4, SR-T5, HB-1.

QTY: Add to Request for quote Request for quote
Specification
Rated Input Power 60 W
Input Impedance 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
Output Impedance 8 Ω
Weight 1.2 kg
