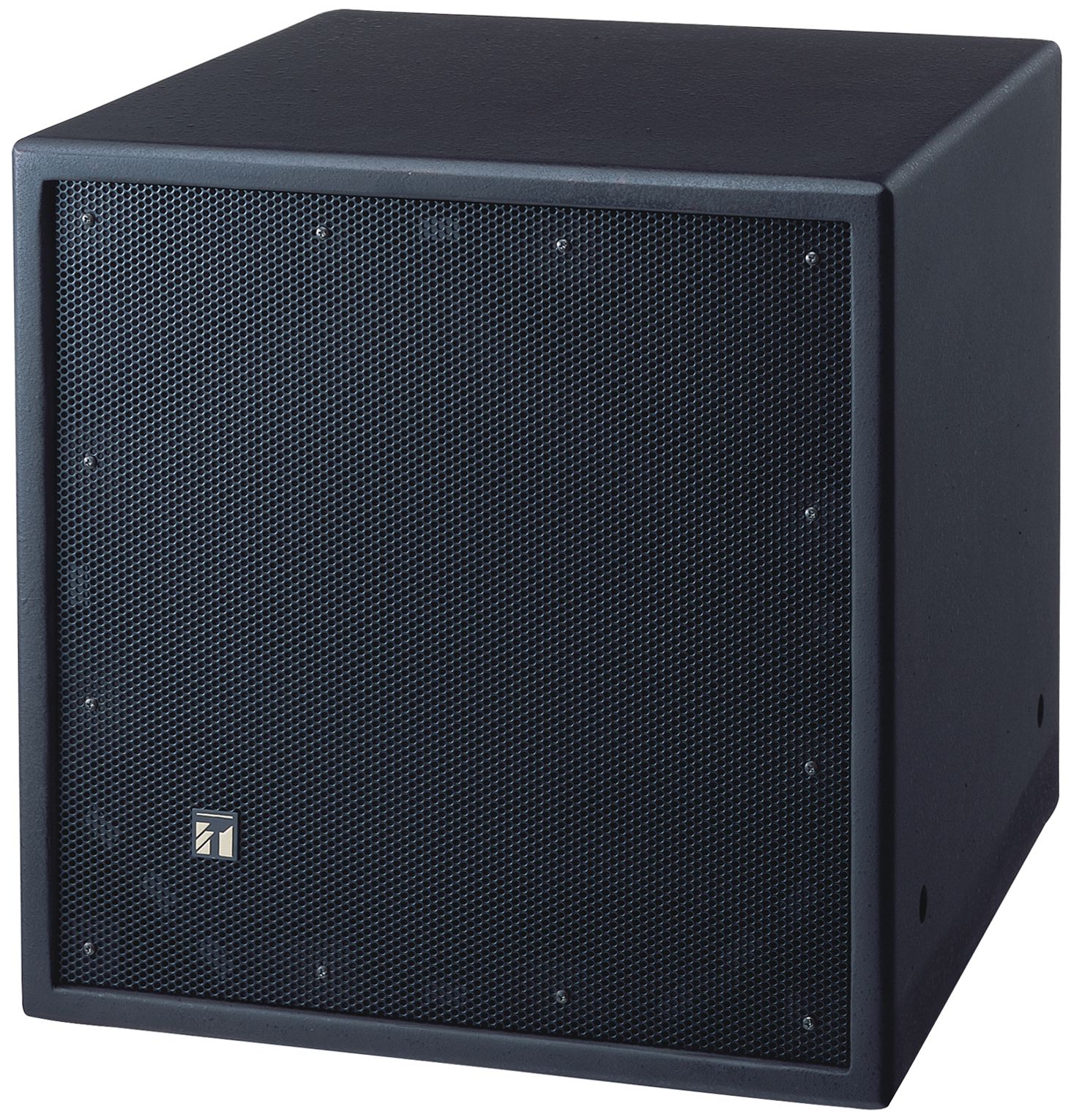

FB-120B Subwoofer System

FB-120B

The FB-120B is a compact, indoor-use subwoofer system employing a high-power 30 cm (12") woofer. It is designed for use in conjunction with TOA's HX-5 series or other full range speakers, and is particularly ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations.



QTY: Add to Request for quote Request for quote
Specification
Power Handling Capacity Continuous pink noise: 200 W
Continuous program: 600 W
Impedance 8 Ω
Sensitivity 90 dB (1 W, 1 m) at installation in free sound field
96 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response 40 - 1,200 Hz (-10 dB)
Speaker Component 30 cm cone-type
Input Terminal Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 11 mm
Finish Enclosure: Plywood
Punched net: Surface-treated steel plate, black, paint
Dimensions 408 (W) × 408 (H) × 450 (D) mm
Weight 15 kg
Option Speaker rigging frame: HY-PF1B
