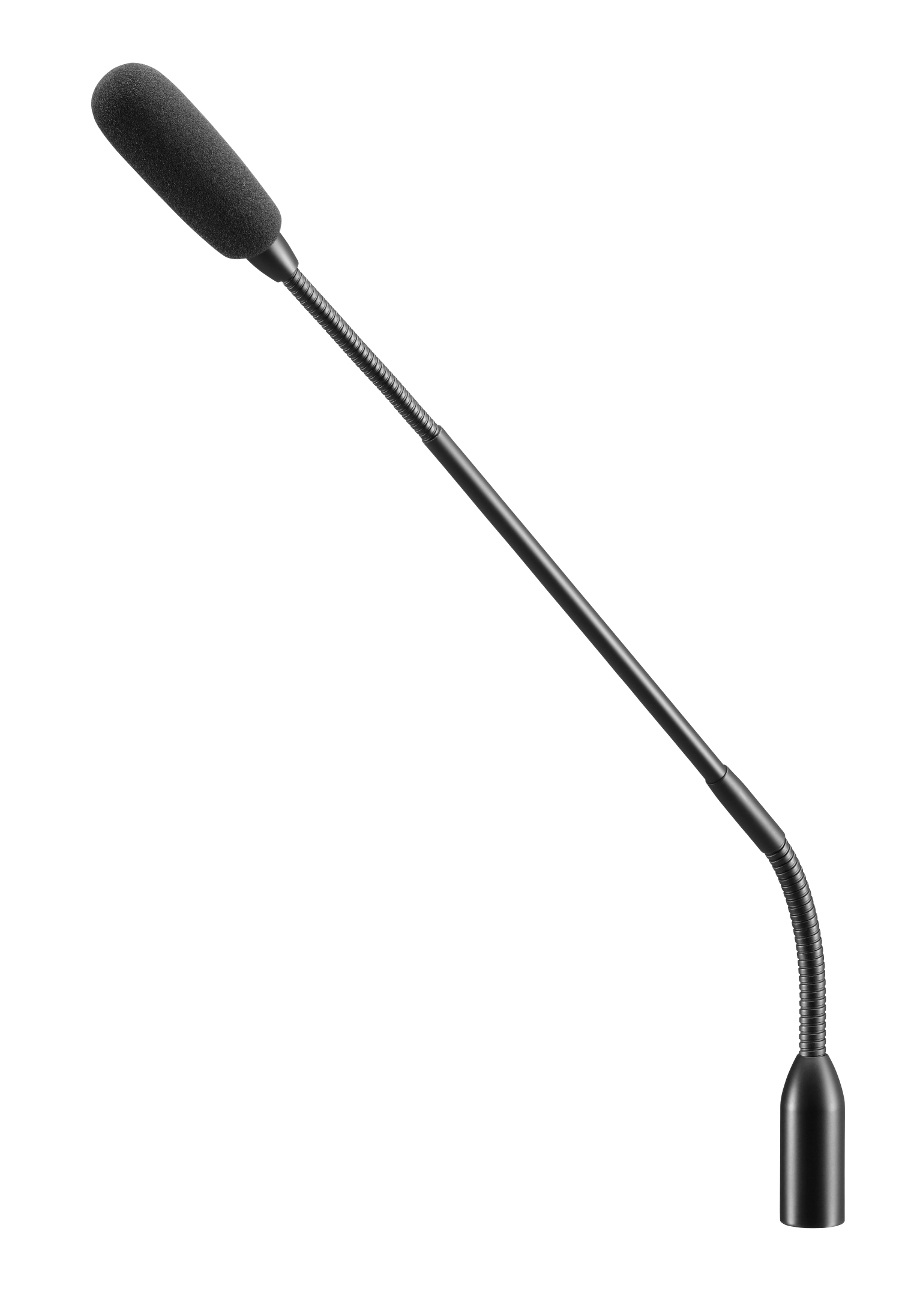

EM-800 Gooseneck Microphone

EM-800

The EM-800 is a slim, high-quality, cardioid condenser microphone designed for use in conference rooms, lecture halls, and paging applications. It can be easily plugged into a dedicated optional ST-800 Microphone Stand.

QTY: Add to Request for quote Request for quote
Specification
Element Electret condenser
Polar Pattern Cardioid
Rated Impedance 120 Ω, balanced
Rated Sensitivity -35 dB (1 kHz 0 dB=1 V/Pa)
Phantom Power 9 - 52 V DC
Frequency Response 60 Hz - 20 kHz
Output Connector XLR-3-12 equivalent
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Finish Body, Shaft: Copper alloy, black, semi-gloss, paint
Dimensions φ12 × 420 mm (φ0.47" × 16.54")
Weight 135 g (0.3 lb)
Accessory Windscreen …1
Usable Stand Microphone Stand: ST-800 (option)
※ The EM-800 requires 9 - 52 V DC phantom power for operation.
