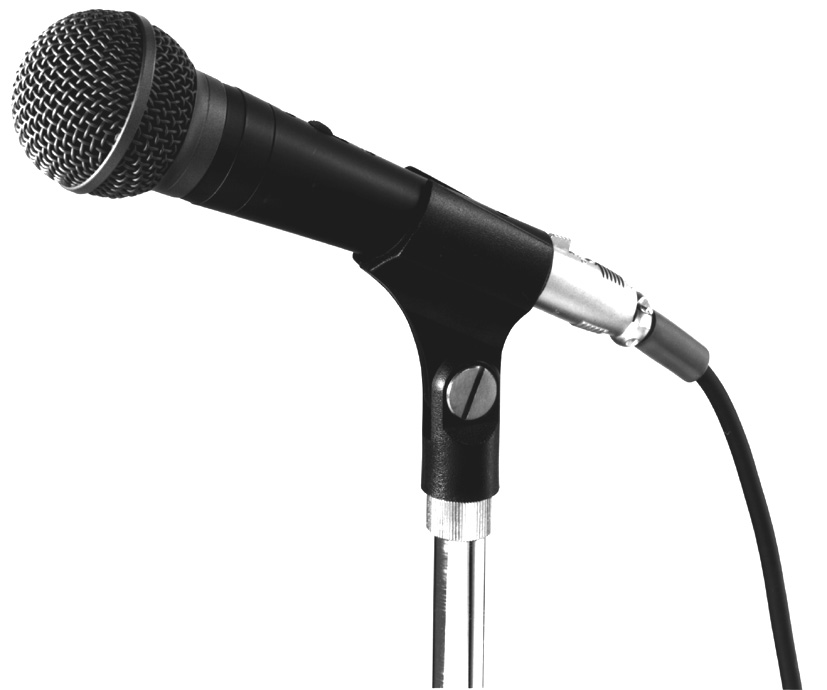

DM-1300 Unidirectional Microphone

DM-1300

The DM-1300 is a microphone suited to both vocal and speech applications.





NOTE: Microphone cables are not supplied with the microphone

QTY: Add to Request for quote Request for quote
Specification
Type Moving coil microphone
Directivity Unidirectional
Rated Impedance 600 Ω, balanced
Rated Sensitivity -54 dB (1 kHz 0 dB=1 V/Pa)
Frequency Response 70 - 15,000 Hz
Applicable Connector XLR-3-11C type connector
Talk Switch Short-off, slide switch
Finish Body: Die-cast zinc, metallic gray, paint
Head: Steel/zinc-plated steel wire, metallic gray, paint
Dimensions φ51 × 170 mm (without connection cable)
Weight 245 g
Accessory

Microphone holder (NS5/9)-----1

Thread adapter (NS5/8 → U5/16 or W3/8)----1

NOTE: Microphone cables are not supplied with the microphone
