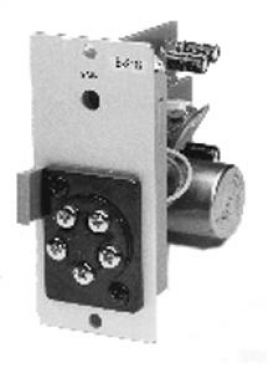

B-21S Bridging Transform

B-21S

The B-21S is a line module to be used in conjunction with the 900 series or AX-1000 amplifier. It has a balanced input and can be remotely controlled.



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 VDC
Current Consumption Less than 27 mA
Input Sensitivity (Rated Output 1 V ) 0.9 - 10 V (adjustable)
Noise Output (20 Hz - 20 kHz BPF) Less than 50 μV
Distortion Less than 0.05 %
Frequency Response 20 Hz - 20 kHz
Remote Volume Control More than 55 dB
Input Connector 5P screw terminal
Output Connector 6P card edge-connector
Dimensions 35 (W) × 78 (H) × 88 (D) mm
Weight 90 g
