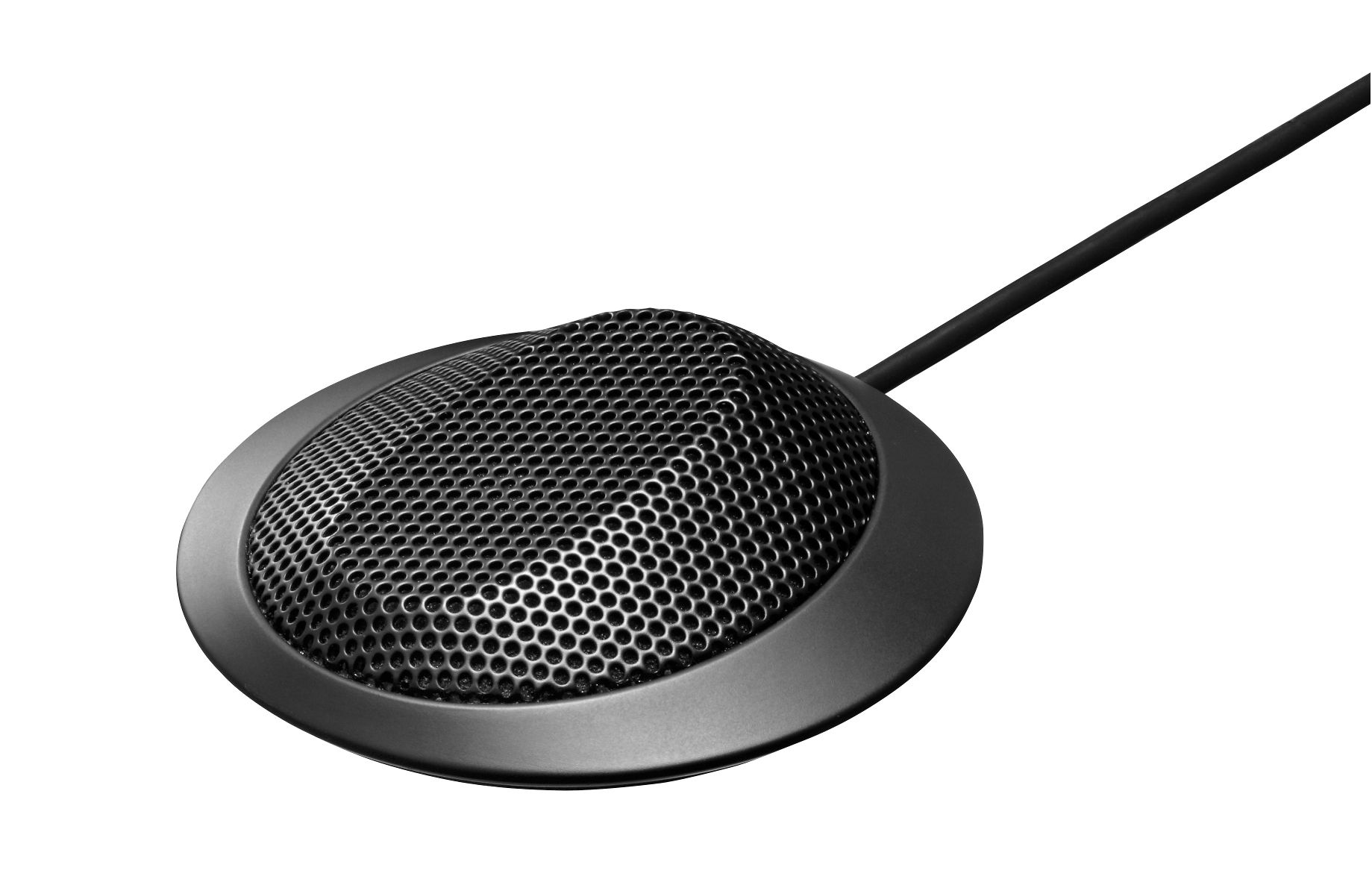

EM-700 Boundary Microphone

EM-700

The EM-700 is a low-profile, high-quality, cardioid condenser microphone suitable for installation on a lecture desk or table top in a conference room. It features optimum acoustic characteristics for sound pick-up applications when placed on a flat surface, realizing pure, natural sound quality.

QTY: Add to Request for quote Request for quote
Specification
Element Electret condenser
Polar Pattern Cardioid
Rated Impedance 120 Ω, balanced
Rated Sensitivity -33 dB (1 kHz 0 dB=1 V/Pa)
Phantom Power 9 - 52 V DC
Frequency Response 35 Hz - 20 kHz
Low Cut 100 Hz, -12 dB/oct
Output Connector XLR-3-12 equivalent
Cord Length 7.5 m (24.61 ft)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Finish Body: Die-cast aluminum, black, mat finish, paint
Punched net: Surface-treated steel plate, black, mat finish, paint
Dimensions 83 (W) × 23 (H) × 83 (D) mm (3.27" × 0.91" × 3.27") (cord excluded)
Weight 290 g (0.64 lb)
※ The EM-700 requires 9 - 52 V DC phantom power for operation.
