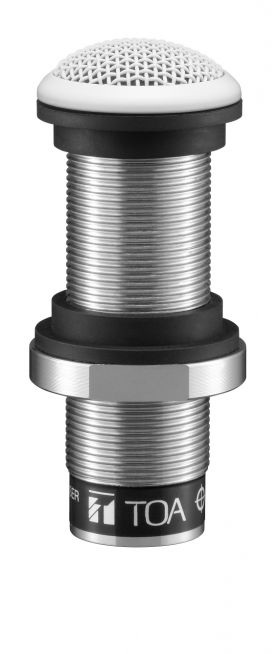

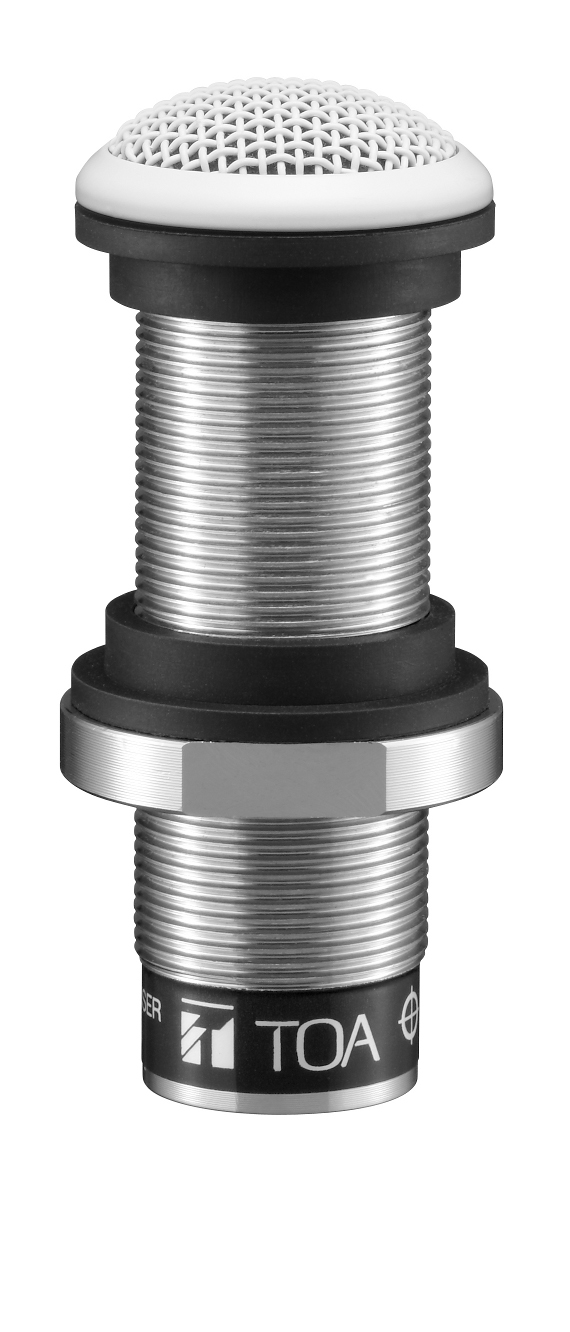

EM-600 Flush-Mount Boundary Microphone

EM-600

The EM-600 is an omnidirectional condenser microphone of only 28 mm (1.1") in diameter designed for sound pick-up application. It can be flush-mounted into a ceiling, wall, or desk, making it unobtrusive. It provides clear and high-quality sound.

QTY: Add to Request for quote Request for quote
Specification
Element Electret condenser
Polar Pattern Omnidirectional
Rated Impedance 120 Ω, balanced
Rated Sensitivity -36 dB (1 kHz 0 dB=1 V/Pa)
Phantom Power 9 - 52 V DC
Frequency Response 30 Hz - 20 kHz
Output Connector XLR-3-12 equivalent
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Finish Body: Steel, white, semi-gloss, paint
Head: Zinc-plated steel wire, white, semi-gloss, paint
Dimensions φ28 × 68 mm (φ1.1" × 2.68")
Weight 85 g (0.19 lb)
Accessory Rubber Isolation Ring …2, M20 Nut …1
※ The EM-600 requires 9 - 52 V DC phantom power for operation.
