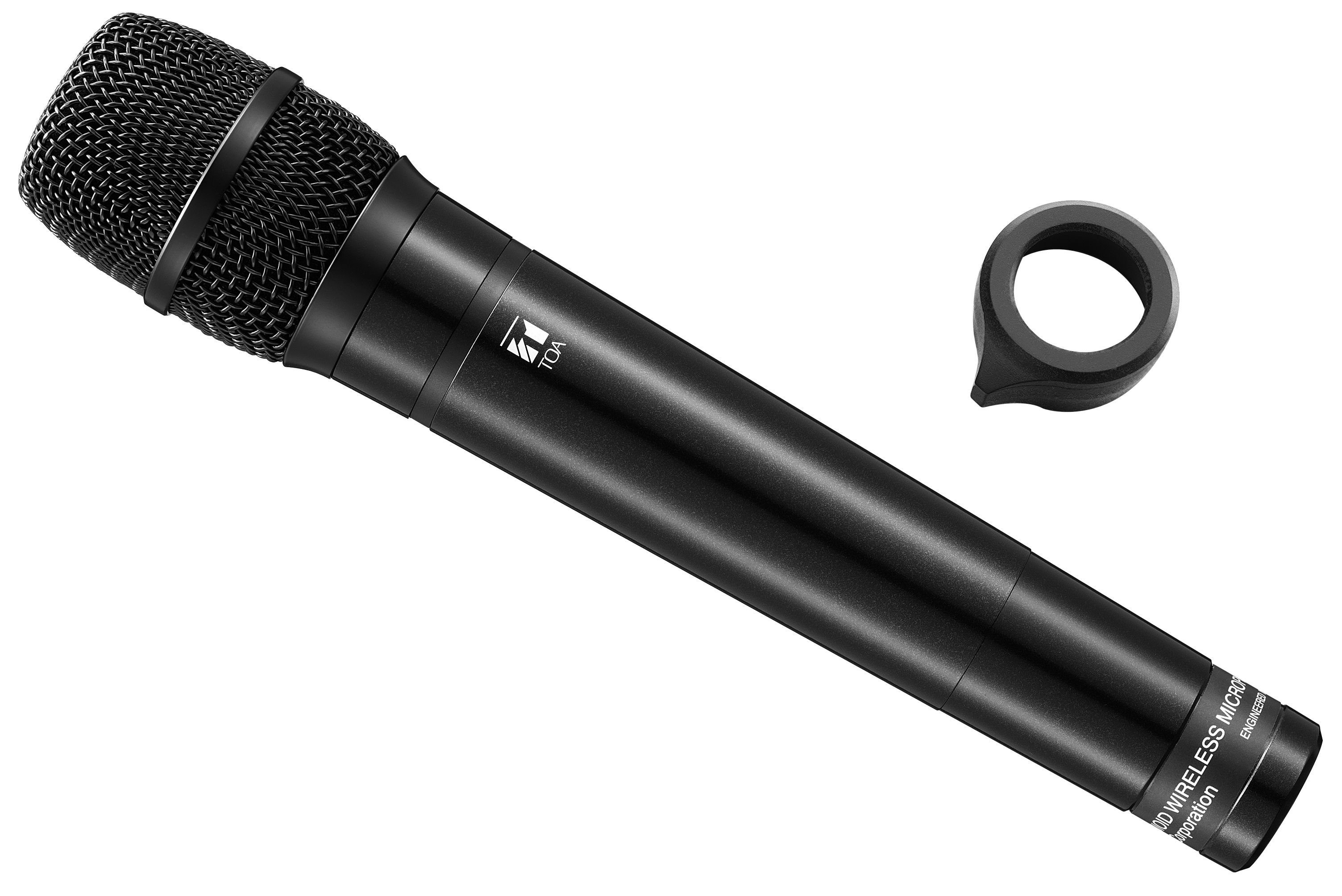

WM-5270 UHF Hand-held Wireless Microphone

WM-5270

The WM-5270 Wireless Microphone employs a dynamic microphone capsule with high input handling capacity and is suitable for vocal application and other professional uses. Thanks to the PLL-synthesizer system, 16 different operating frequencies (4 banks) are made available. A high output power ensures stable radio signal transmission. The maximum input sound pressure can be set in the range of 130 dB SPL to 142 dB SPL by a PAD switch, permitting adaptation to wide range of input sound pressure.





Specification
Microphone Element Dynamic microphone unit: Unidirectional
Modulation Frequency modulation
Frequency Range 576 - 865 MHz*, UHF
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power 50 mW or less
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
Maximum Input Level 142 dB SPL
Maximum Deviation ±40 kHz
Audio Frequency Response 80 Hz - 15 kHz
Dynamic Range (AF Circuit) 95 dB or more (with WT-5800)
Battery AA alkaline dry cell battery
Battery Life Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery)
Operating Humidity 30 % to 85 %RH
Finish Dark gray
Dimensions φ48 × 244 mm (φ1.89" × 9.61")
Weight 340 g (0.75 lb) (with battery)
Accessory Microphone holder (with stand adapter) …1,
Screw driver (housed in the body) …1, Storage case …1, Rolling stopper …1
