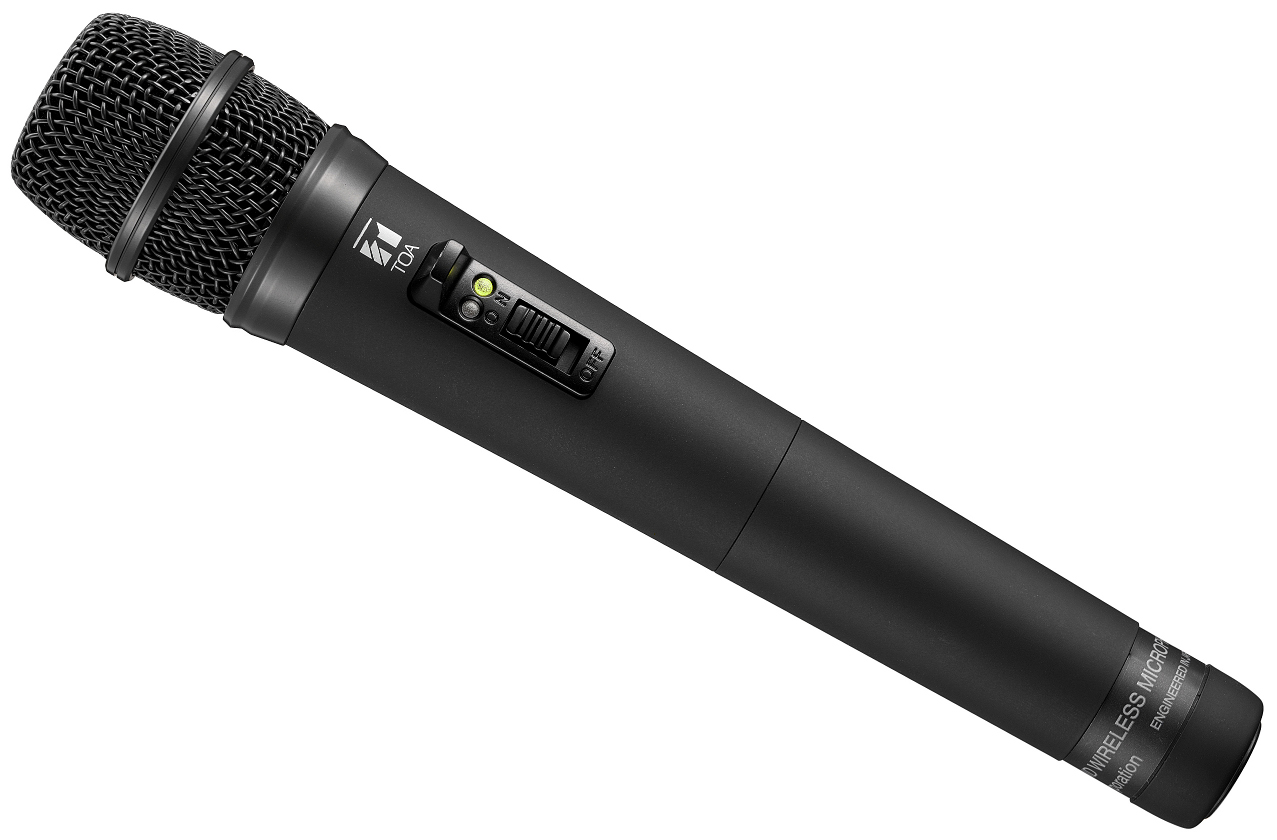

WM-5225 Wireless Microphone (Handheld)

WM-5225

The WM-5225 Wireless Microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. This microphone uses WB-2000 (Ni-MH rechargeable battery) or AA batteries.





QTY: Add to Request for quote Request for quote
Specification
Microphone Element Electret condenser microphone unit: Unidirectional
Modulation Frequency modulation
Frequency Range 576 - 932 MHz*, UHF
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power 50 mW or less
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
Maximum Input Level 126 dB SPL
Maximum Deviation ±40 kHz
Audio Frequency Response 100 Hz - 15 kHz
Dynamic Range 95 dB or more (with WT-5800)
Battery WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option)
or AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Resin, coating
Dimensions φ43.6 x 231.5 mm (φ1.72" × 9.11")
Weight 180 g (0.4 lb) (with battery)
Accessory Microphone holder W3/8" (with stand adapter) …1,
Screw driver …1, Storage case …1
