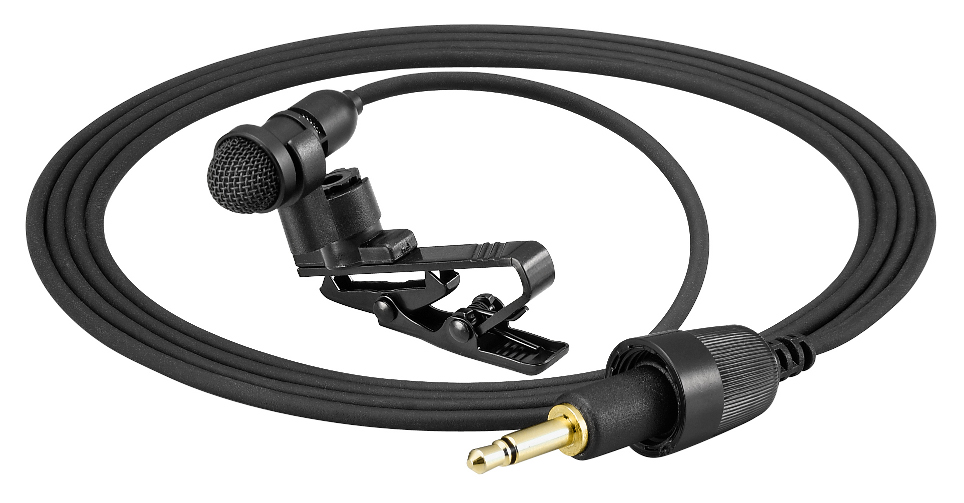

YP-M5300 Unidirectional Lavalier Microphone

YP-M5300

The YP-M5300 is lavalier microphone. It employs an unidirectional electret condenser microphone element.

QTY: Add to Request for quote Request for quote
Specification
Type Electret condenser type
Directivity Unidirectional
Sensitivity -63 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
Frequency Response 100 Hz - 12 kHz
Maximum Input Level 120 dB SPL
Cord Length 1.3 m (4.27 ft)
Connector φ3.5 mm (φ0.14") mini plug
Finish Dark black
Weight 20 g (0.71 oz) (cable included)
