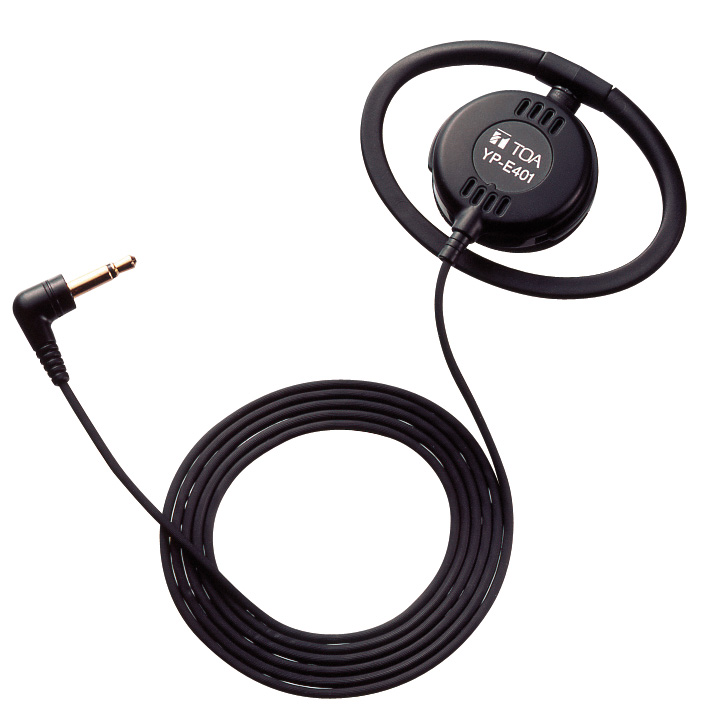

YP-E401 Ear-suspension Earphone

YP-E401

TOA's YP-E401 Ear-suspension Earphone is 3.5 mm in plug diameter, and 16 Ω in impedance.



QTY: Add to Request for quote Request for quote
Specification
Type Dynamic type
Impedance 16 Ω
Frequency Response 300 - 15,000 Hz
Rated Sensitivity -5
88 dB (0 dB = 2 × 10 Pa, 1 kHz, 10 mW)
Input Max. 50 mW
Terminal/Connector φ3.5 mm monaural plug
Finish Black
Weight 17 g
Accessory Ear-pad………1, Suspension ring………2
