WT-5800 UHF Wireless Tuner

WT-5800

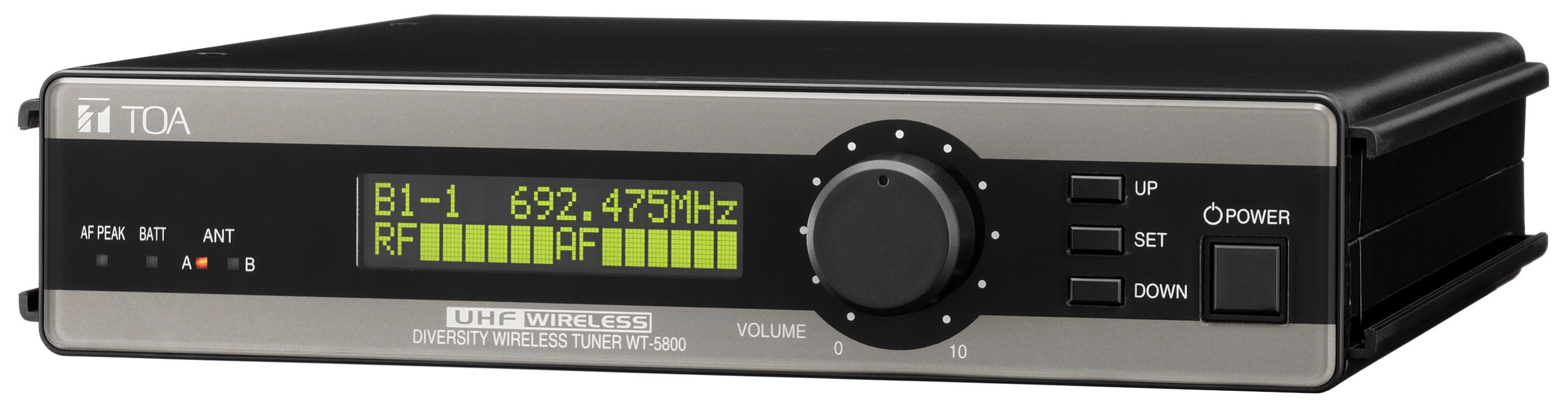

The wireless tuner WT-5800 is a PLL-synthesizer controlled double superheterodyne true diversity tuner to be used in UHF wireless systems. It employs a compander noise reduction circuit to minimize the influence of the ambient RF noise.





QTY: Add to Request for quote Request for quote
Specification
(*1) 0 dB = 1 V
Power Source AC mains (supplied AC adapter must be used)
Power Consumption 250 mA (12 V DC)
Receiving Frequency 576 - 865 MHz (*2), UHF
Channel Selectable 64 selectable frequencies
Receiving System Double super-heterodyne
Diversity System Space diversity (true diversity)
Mixing Output MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω
phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced)
Mixing Input -20 dB (*1), 10 kΩ, unbalanced, phone jack
Antenna Input 75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max)
Antenna Output 75 Ω, BNC (Gain 0 dB)
Receiving Sensitivity 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity 16 - 40 dBμV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Tone Frequency 32.768 kHz
Indicator Audio (6 step), RF (6 step), ANT A/B, Audio (peak), Battery alarm
Channel Check Usable frequencies scanning
Signal to Noise Ratio 110 dB or more (A-weight, unbalanced output)
Harmonic Distortion 1 % or less (typical)
Frequency Response 100 Hz - 15 kHz, ±3 dB
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 30 % to 85 %RH
Finish Resin, black
Dimensions 210 (W) × 44 (H) × 205.1 (D) mm (8.27" × 1.73" × 8.07")
Weight 700 g (1.54 lb)
Accessory AC adapter (*3)…1, Whip antenna…2, Rubber foot…4
Option Mounting bracket kit: MB-WT3 (for rack mounting one WT-5800 unit)
MB-WT4 (for rack mounting two WT-5800 units)
