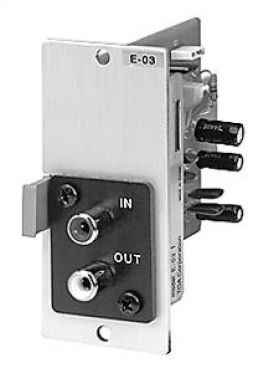

E-03R Controller Module

E-03R

The E-03R is a controller module for F-121C/121CM to be used in conjunction with the 900 series modular mixers and amplifiers (MK2 and A series).



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 VDC
Current Consumption Less than 25 mA
Input 1 V, 100 kΩ, RCA pin jack
Output 1 V, 1 kΩ, RCA pin jack
Noise Output (20 Hz - 20 kHz BPF) Less than 50 μV
Distortion Less than 0.05 %
Dimensions 35 (W) × 78 (H) × 88 (D) mm
Weight 55 g
