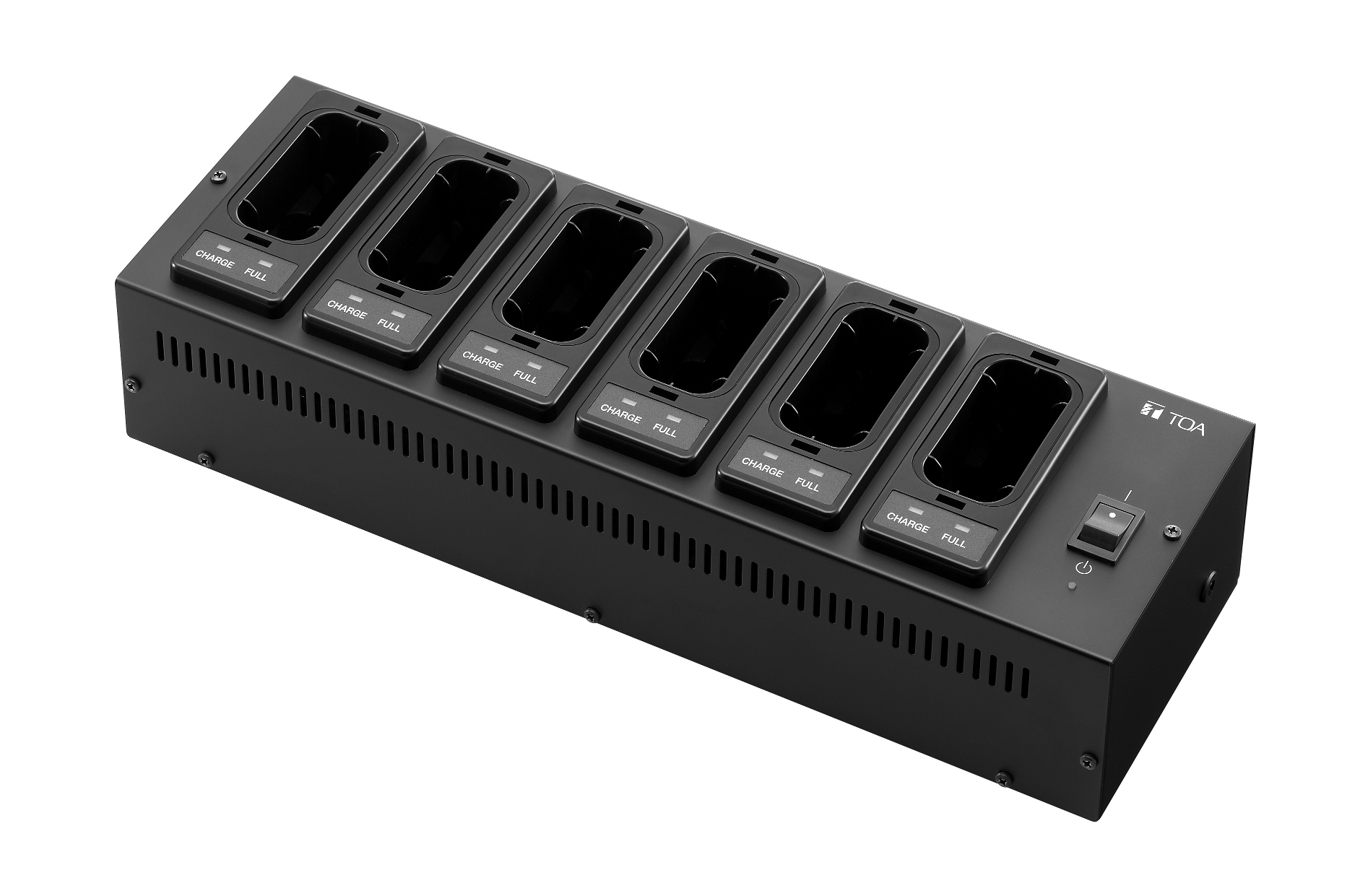

BC-5000-6 Battery Charger

BC-5000-6

The BC-5000-6 is a dedicated battery charger for the WM-5225 and WM-5265 Wireless Microphones, WM-5325 Wireless Transmitter, and WT-5100 Portable Receiver, which work with AD-5000-6. It employs a quick charging system for nickel metal hydride (Ni-MH) batteries, allowing up to 6 wireless microphones to be fully charged within 3 hours.

  *Note: for best performance TOA Canada recommends using our WB-2000-2 RECHARGABLE BATTERY (2-PACK)



QTY: Add to Request for quote Request for quote
Specification
Power Source 12 V DC (optional AC adapter AD-5000-6 must be used)
Power Consumption 2.2 A
Charging Time Max. 3 h
Number of Wireless Microphone to be Charged Simultaneously 6 pieces
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Case: Steel plate, black, paint
Microphone receptacle section: ABS resin, black
Dimensions 390 (W) × 118 (H) × 131 (D) mm (15.35" × 4.65" × 5.16")
(including mounting adapter)
Weight 2 kg (4.41 lb) (charger with the mounting adapters attached)
Accessory Mounting adapter …6
Option Rechargeable battery: WB-2000-2 (containing 2 pieces)
AC adapter: AD-5000-6
