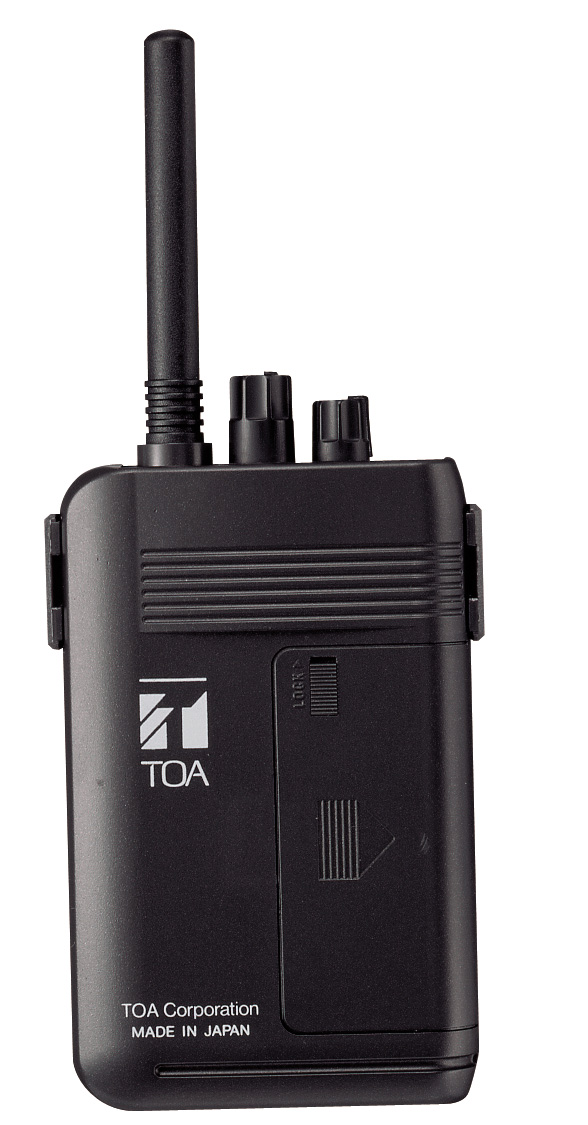

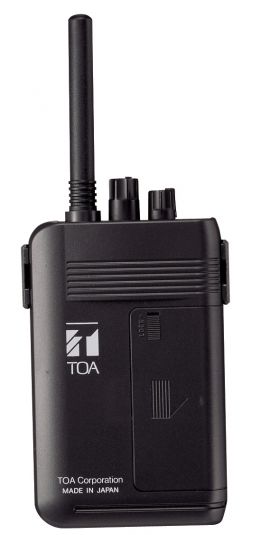

WM-2100 Portable Transmitter

WM-2100 01

TOA's WM-2100 is a Portable Transmitter designed to use 470 MHz band radio signals. An optional microphone (not supplied with the unit) is required.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 0.775 V
Power Source 1.5 V DC (Battery)
Modulation Frequency modulation
Transmitting Frequencies 470 MHz band (5 ch) (470.075, 470.150, 470.375, 470.625, 470.725 MHz)
RF Carrier Power 2 mW
Oscillator PLL synthesizer
Frequency Response 200 - 5,000 Hz (Portable transmitter → Potable receiver)
Pre-emphasis 50 μs
Input Level -50 dB* (sensitivity Hi)/-44 dB* (sensitivity Lo)
Battery Life 18 hours (alkaline)
Battery LR6 (1.5 V) × 1
Operation Temperature -10℃ to +40℃
Finish Resin, dark gray
Dimensions 62 (W) × 163.6 (H) × 32.5 (D) mm
Weight 115 g (battery included)
Accessory Neck strap………1
* Two optional microphone are made available for selection: YP-M101: tie-clip microphone; YP-M201: close-talking microphone
