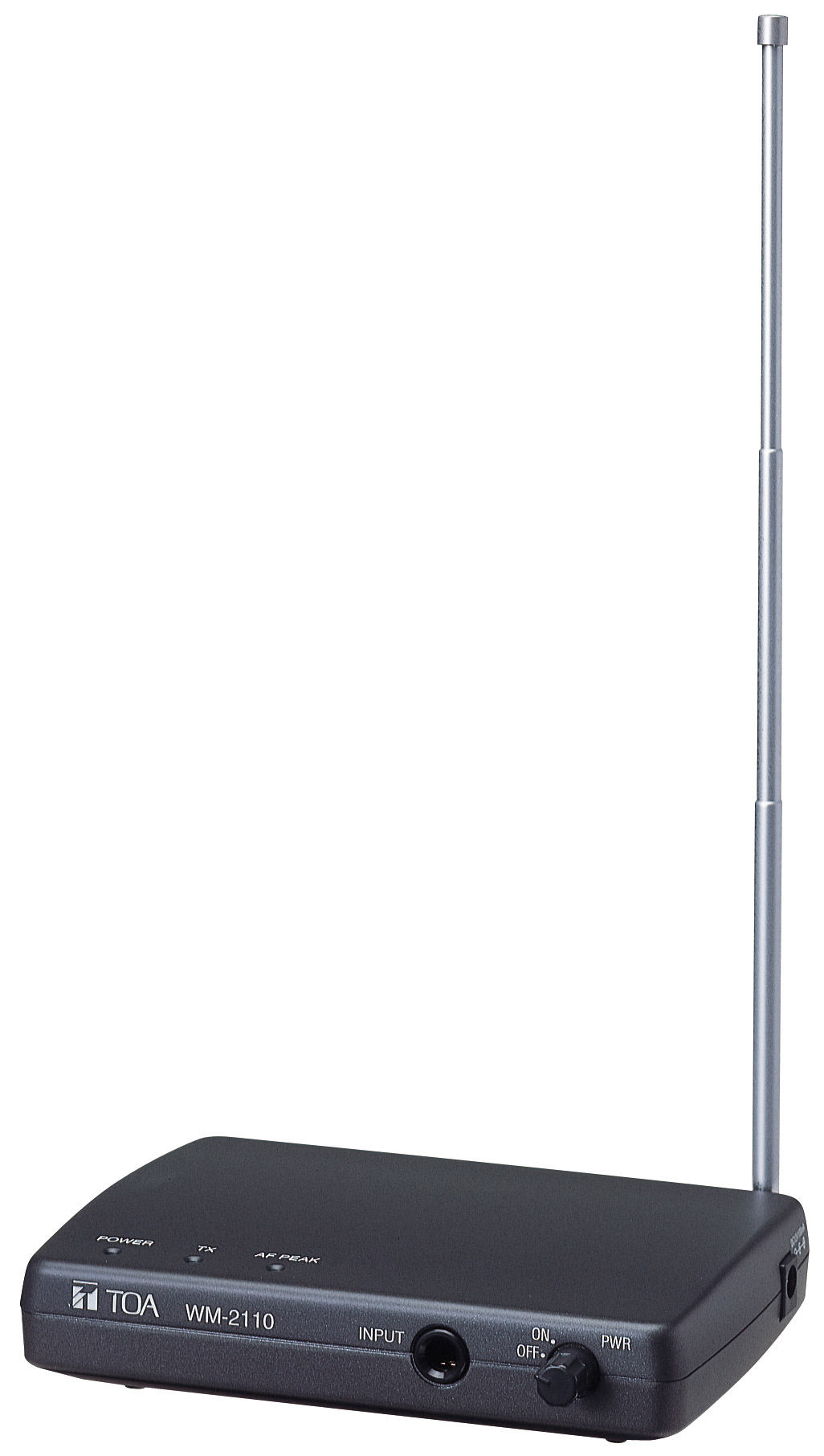

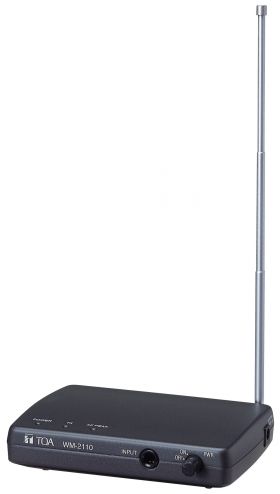

WM-2110 Desk-top Transmitter

WM-2110 01US

TOA's WM-2110 is a Desk-top Transmitter designed to use 470 MHz band radio signals.

QTY: Add to Request for quote Request for quote
Specification
*0 dB = 1 V
Power Source 120 V AC, 60 Hz
Power Consumption 3 W
Modulation Frequency modulation
Transmitting Frequencies 470 MHz band (5 ch) (470.075, 470.150, 470.375, 470.625, 470.725 MHz)
RF Carrier Power 5 mW
Oscillator PLL synthesizer
Frequency Response 150 - 6,000 Hz (Desk-top transmitter → Potable receiver)
Pre-emphasis 50 μs
Input Level Standard input: -54 dB*/-60 dB*/-66 dB* (Mic)
-12 dB*/-18 dB*/-24 dB* (Line)
Maximum input: -30 dB*/-36 dB*/-42 dB* (Mic)
+12 dB*/+6 dB*/0 dB* (Line)
Mic/Line selection, 600 Ω, unbalanced, phone jack
Remote Input Make contact input: Release voltage: 2 V DC, short-circuit current: 0.2 mA,
loop resistance: under 100 Ω
Remote control mode: Transmit radio signal when at make
Operation Temperature -10℃ to +40℃
Finish ABS Resin, dark gray
Dimensions 140 (W) × 31 (H) × 119.5 (D) mm
Weight 270 g
Accessory AC-DC adapter (1.8 m)…1, Screw driver…1, 3-pole phone plug cord (2 m)…1
