IR-820SP Y 4QD00

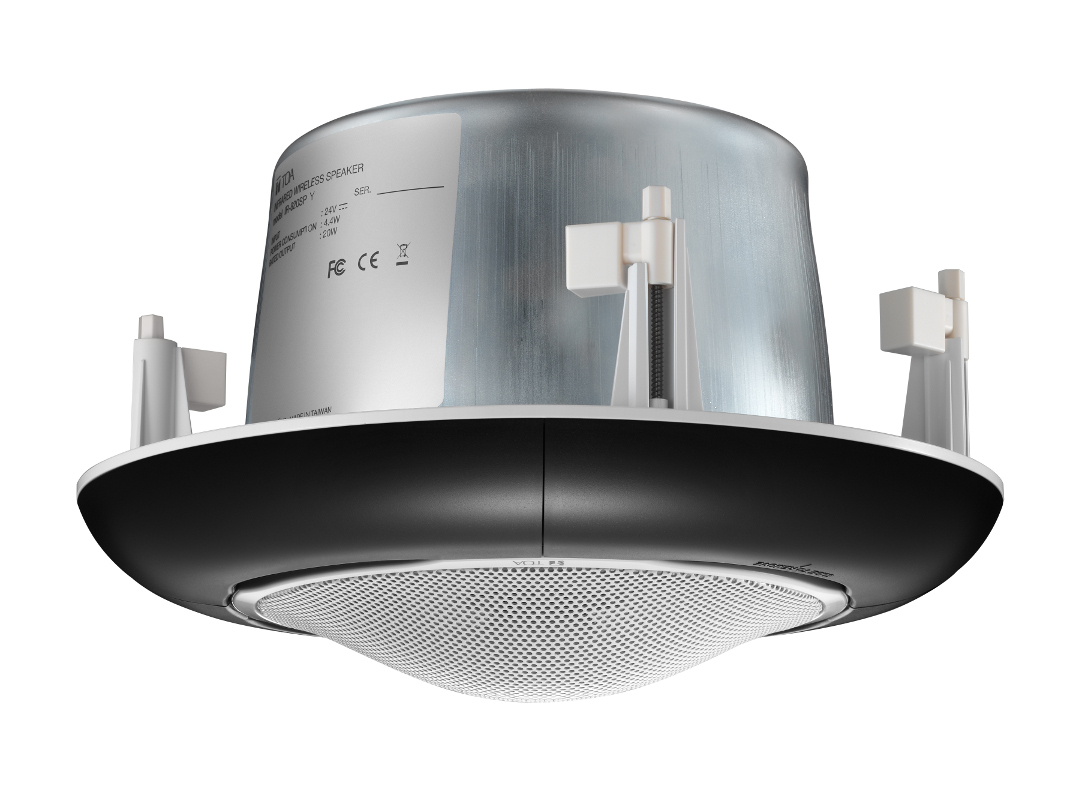

IR-820SP Y 4QD00 Infrared Speaker

IR-820SP Y 4QD00

The Infrared Wireless Microphone System using this IR-820SP Y 4QD00 is a PA system designed for use in the school classrooms assuming that their size is about 10 m × 10 m (30 ft × 30 ft). The IR-820SP Y 4QD00 is a ceiling-mounted powered speaker with the infrared receiver and offers a wide frequency range of high-quality sound output. Possible to use with Channel A / B / 1 / 2. It features a digital amplifier for the amplification section, and a full-range speaker for the speaker section. Use of the supplied mounting hardware and optional HY-TB1 Tile Bar Bridge permits it to be versatilely mounted to match a wide range of applications and installation locations. This speaker is combined with an infrared wireless microphone and the IR-802T Infrared Wireless Tuner to make up the infrared wireless microphone system. The infrared microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent school classrooms.

IR Classroom Brochure IR Classroom Brochure IR Classroom A&E Spec



Why our wide dispersion speaker improve classroom sound.
Click to learn more.



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 V DC (supplied from IR-802T)
Power Consumption 4.4 W (based on UL standards)
Rated Output 20 W
Frequency Response 100 Hz - 20 kHz (-10 dB) at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)
Amplification System Class D
Distortion 5 % or less (rated output)
Speaker Component 12 cm 5") cone-type
Infrared Wireless Receiver
Wavelength 870 nm
Carrier Frequency Channel A: 3.100 MHz Channel B: 3.350 MHz
Channel 1: 4.100 MHz Channel 2: 4.725 MHz
Reception Angle 360゜ (Horizontal)
Connection Terminal RJ-45
LED Indicator Power (green) × 1
UL Code  UL60065, UL2043
Mounting Hole φ300 mm (φ11.81")
Usage Cable CAT-5 UTP
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Enclosure: Steel plate, plating
Baffle:        Fire-resistant ABS resin (resin material grade: UL94V-0, white)
Punched net: Steel plate, white
Filter section: Polycarbonate, optical cut filter
Dimensions φ320 × 205 (D) mm (φ12.6 × 8.07)
Weight 3.4 kg (7.5 lb)
Accessory Safety wire (600 mm or 1.97 ft) ...................... 1
Ceiling reinforcement ring .............................. 1
Paper pattern .................................................. 1
Trim ring .......................................................... 1


* 0 dB = 1 V
